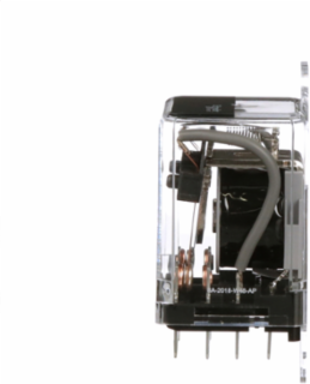

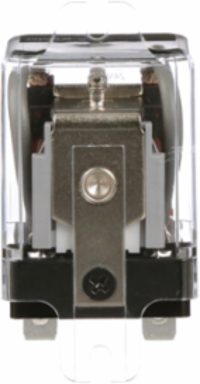

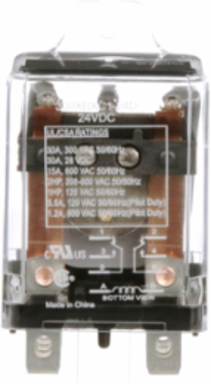

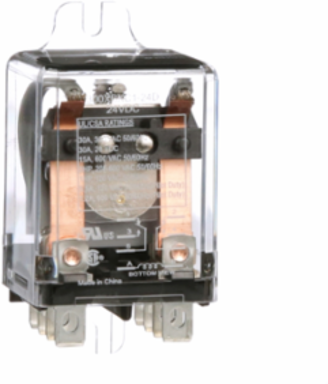

Schneider Electric 300XBXC1-24D Power Relay, DPDT, side flange cover, quick connections terminals, 30A, 24V DC, 2NO + 2NC
- MPN: 300XBXC1-24D
- PPN: SCH-300XBXC1-24D
CAD
$61.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product belongs to Schneider Electric, an offer of 300 series power relay range. It offers a high contact rating with a magnetic blowout of 30A at 300V AC. This product can hold motor loads up to 2HP at 208V to 600V AC with a nominal coil voltage of 24V DC. Its maximum switching voltage of 600V and improved dielectric strength of 4000V(rms) between mutually isolated conductive elements and frame make it suitable for high-power switching applications. It offers a DPDT (double pole double throw) contact configuration with increased space between stationary contact terminals. This makes it an ideal solution for various application requirements and also enables the use of fully booted Quick Connect terminals. Its dimensions are 37.8mm (width) x 73.6mm (height) x 34.5mm (depth), and it weighs 85g. It has a 2mm contact gap, 8mm creepage, and clearance for mounting that meets international requirements. Its wide range of accessories and the side flange mounting option help increase design and installation flexibility. It complies with directives such as RoHS, WEEE, and REACh relating to environmental protection.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 34.5 mm |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 1 hp 120 V AC 50/60 Hz2 hp 208/240 V AC 50/60 Hz, 2 hp 480/600 V AC 50/60 Hz |
|---|---|
| Minimum Switching Current | 500 mA 5 V DC |
| Maximum Switching Voltage | 600 V AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 4000 V AC between coil and contact2500 V AC between poles, 2500 V AC between contacts |
| [Ie] Rated Operational Current | 30 A at 300 V AC (at nominal load) conforming to UL15 A at 600 V AC (at nominal load) conforming to UL, 30 A at 28 V DC (on resistive load) conforming to UL, 5.5 A at 120 V AC (on pilot duty) conforming to UL, 1.2 A at 600 V AC (on pilot duty) conforming to UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0316793927, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0172784242, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 53 kg CO2 eq., 53.0628125 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2312024EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy contacts |
| Electrical Durability | 100000 cycles |
| Mounting Support | flange |
| Power Consumption In W | 2.3-2.3 W DC |
| Product Or Component Type | power relay |
| Software Version | v5.9.4 |
| Switch Function | DPDT |
| Voltage Range | 0.8...1.1 Un DC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The 300 series power relay offers high contact rating of 30 A at 300 VAC with ability to hold motor loads up to 2 hp at 208 to 600 VAC with nominal coil voltage 24 VDC . Maximum switching voltage 600 V and improved dielectric strength 4000 V(rms) between mutually isolated conductive elements and frame make relay suitable for high-power switching applications with power consumption of 1.92 W in 40% active mode with life span of 10 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 97.0608 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 73.6 mm |
| Connections - Terminals | Quick |
| Package Weight(Lbs) | 90.719 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA |
| Drop-out Voltage Threshold | >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.1704141703 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5472898522 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO + 2 NC |
| Mechanical Durability | 5000000 cycles |
| Power Consumption In Va | 3.4-3.4 VA AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 54 kg CO2 eq. |
| Pep Code | ENVPEP2312024EN |
| Pep Verification Date | 2023-12-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 68 |
| Width Nominal | 37.8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 53.8294743394 |
| Environmental Disclosure | ENVPEP2312024EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2312024EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2312024EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | power relay |
|---|
Input Attributes
| Input Current | 30 A |
|---|---|
| Input Voltage | 24 V DC |
| Input Resistance | 300 Ohm |
|---|
