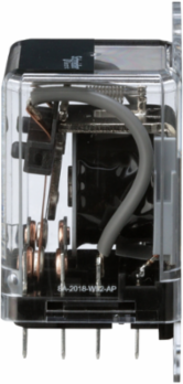

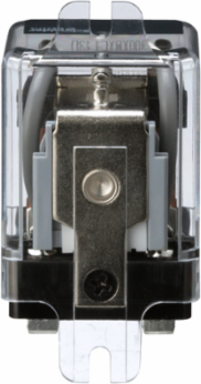

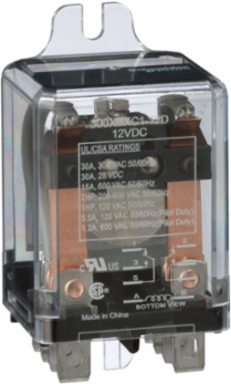

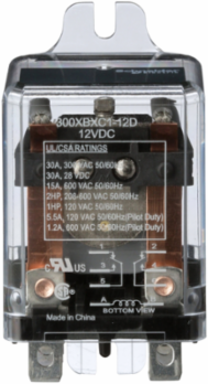

Schneider Electric 300XBXC1-12D Power Relay, DPDT, side flange cover, quick connections terminals, 30A, 12V DC, 2NO + 2NC
- MPN: 300XBXC1-12D
- PPN: SCH-300XBXC1-12D
CAD
$56.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Relay, DPDT, side flange cover, quick connections terminals, 30A, 12V DC, 2NO + 2NC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth34.5 mm
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 120 V AC 50/60 Hz2 hp 208/240 V AC 50/60 Hz, 2 hp 480/600 V AC 50/60 Hz
- Minimum Switching Current
- 500 mA 5 V DC
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4000 V AC between coil and contact2500 V AC between poles, 2500 V AC between contacts
- [Ie] Rated Operational Current
- 30 A at 300 V AC (at nominal load) conforming to UL15 A at 600 V AC (at nominal load) conforming to UL, 30 A at 28 V DC (on resistive load) conforming to UL, 5.5 A at 120 V AC (on pilot duty) conforming to UL, 1.2 A at 600 V AC (on pilot duty) conforming to UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0316793927, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0172784242, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 48 kg CO2 eq., 48.27375
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2312024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Contacts Material
- silver alloy contacts
- Electrical Durability
- 100000 cycles
- Mounting Support
- flange
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 49 kg CO2 eq.
- Pep Code
- ENVPEP2312024EN
- Pep Verification Date
- 2023-12-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 68
- Width Nominal
- 37.8 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1024.3275
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1024.3275
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA
Drop-out Voltage Threshold>= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1704141703
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.5472898522
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NO + 2 NC
Mechanical Durability5000000 cycles
Power Consumption In W1.8-1.8 W DC
Product Or Component Typepower relay
Software Versionv5.9.4
Switch FunctionDPDT
Voltage Range0.8...1.1 Un DC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe 300 series power relay offers high contact rating of 30 A at 300 VAC with ability to hold motor loads up to 2 hp at 208 to 600 VAC with nominal coil voltage 24 VDC . Maximum switching voltage 600 V and improved dielectric strength 4000 V(rms) between mutually isolated conductive elements and frame make relay suitable for high-power switching applications with power consumption of 1.92 W in 40% active mode with life span of 10 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh88.3008
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal73.6 mm
Connections - TerminalsQuick
Package Weight(Lbs)82 g
Warranty (In Months)18
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1024.3275
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 49.0404118394
- Environmental Disclosure
- ENVPEP2312024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2312024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 30 A
- Input Voltage
- 12 V DC
Input Resistance57 Ohm
