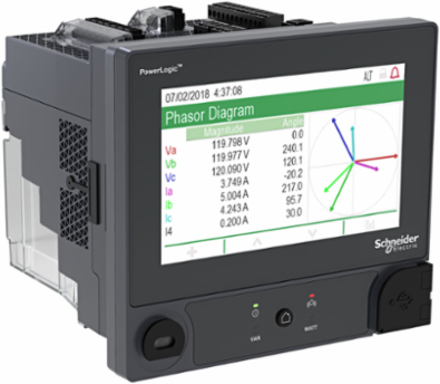

Schneider Electric METSEION92040 PowerLogic ION9000 Meter, 192 mm Display, DIN Mount, 8 Inputs, 4 Outputs
Schneider Electric METSEION92040 PowerLogic ION9000 Meter, 192 mm Display, DIN Mount, 8 Inputs, 4 Outputs
- MPN: METSEION92040
- PPN: SCH-METSEION92040
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data. A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications. Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22). Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future. Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts. With 2 GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms. 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules. Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Ability to capture power quality events as short as 20 µs and record both waveforms and 1/2-cycle RMS concurrently on any event. Voltage inputs of 100 to 690 V between phases; Current inputs of 1 A, 5 A; current class 2, 10, 20 A; Frequency of 20-450 Hz. Wide control power range of 90 to 480 VAC or 110 to 480 VDC. DIN rail mounting with remote display and panel mounting (with back to back adapter), plus 2 display options, further enhance the flexibility and adaptability of the ION9000.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1801009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1801009EN
Complementary
- Network Frequency
- 50 Hz || 60 Hz
- Communication Port Support
- 2 RS485 removable screw terminal block
- Height
- 160 mm
- Sampling Rate
- 1024 samples/cycle
- Number Of Outputs
- 4 digital || 2 form C relay output
- Communication Port Protocol
- Modbus RTU 2400...115200 bps - 2-wire || ION 2400...115200 bps - 2-wire || DNP3 2400...115200 bps - 2-wire || Modbus TCP 10/100 Mbit/s || ION TCP 10/100 Mbit/s || DNP3 TCP 10/100 Mbit/s || IEC 61850 || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || DHCP || DNS || DLMS
- Communication Service
- compliant reports || power quality summary || energy report || EcoStruxure Power Events Analysis || SMTP e-mail notification || SNMP
- Port Ethernet
- 10/100BASE-TX 2 RJ45
- Power Consumption In Va
- 38 VA 480 V AC
- Tamperproof Of Settings
- protected by sealable cover
- Electrical Insulation Class
- class III EN/IEC 62052-11
- Time Synchronisation Protocol
- GPS || IRIG-B || NTP || SNTP || PTP
- Ethernet Service
- DHCP client || Device Profile Web Services (DPWS) || Rapid Scanning Tree Protocol (RSTP) || FTP/HTTP/HTTPS
- Communication Gateway
- Ethernet/serial
- Data Recording
- time stamping || min/max of instantaneous values || user-definable data logs || continuous logging or snapshot || trending/forecasting || event logs || alarm logs || configuration change || power outage || user login/logout || data logs || GPS synchronisation || sequence of event recording
- Cybersecurity
- Syslog protocol support || robust security logs || port hardening || enable/disable communication ports || hardware metrology lock
- Analogue Input Type
- voltage (impedance 5 MOhm) || external CT (impedance 0.3 mOhm)5 x
- Width
- 160 mm
- Depth
- 135.3 mm
- Maximum Power Consumption In Va
- 80 VA 480 V AC
[Us] Rated Supply Voltage90...480 V AC 45...66 Hz +/- 10 % || 90...120 V AC 400 Hz +/- 10 % || 110...480 V DC +/- 15 %
Power Quality AnalysisEN 50160 compliance checking || IEEE 519 harmonic limit || IEC 61000-4-30 class A compliance reporting || IEEE 519 compliance reporting || waveform capture || total demand distortion || total harmonic distortion || up to the 63rd harmonic || up to the 127th harmonic with software || disturbance direction detection || dip, swell and transient || half cycle data acquisition || transient detection (20 µs)
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
Memory Capacity2 GB
Type Of Measurementvoltage sags and swells || current sags and swells || voltage || current || frequency || active and reactive power total || apparent power total || active and reactive power per phase || apparent power per phase || power factor total || power factor per phase || active and reactive energy || apparent energy || harmonic distorsion (I THD & U THD)
Frequency Measurement Range20-450 Hz
Ride-Through Time100 ms 6 cycles at 60 Hz 120 V AC typical || 400 ms 24 cycles at 60 Hz 240 V AC typical || 1200 ms 72 cycles at 60 Hz 480 V AC typical
Display Resolution800 x 480 pixels
Net Weight1.5 kg
Measurement Current0.01-20 A
Number Of Inputs8 digital 30 V AC/60 V DC
Measurement Accuracyvoltage +/- 0.1 % || current +/- 0.1 %
Mounting SupportDIN rail meter device || door cut-out remote display
Poles Description3P + N + E
[In] Rated Current1 A || 5 A
Isolation VoltageIII400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Web Servicesviewing of captured waveform || web page || pass/fail report for IEEE 519 || pass/fail report for EN 50160 || ITIC (CBEMA) curve || SEMI curve || NEMA motor derating curve || alarm notification by e-mail || TLS 1.2 || push historical data via mail
Display Typeremote LCD display || colour touchscreen
Accuracy Classclass 0.1S active energy IEC 62053-22 || class 0.1 active energy IEC 61557-12 || class 0.1 active energy ANSI C12.20 || class 0.5S reactive energy IEC 62053-24 || class 0.1 current IEC 61557-12 || class 0.1 voltage IEC 61557-12 || class 0.1 active power IEC 61557-12 || class 0.5 power factor IEC 61557-12
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Degree Of Protection
- UL type 12, front
- Ambient Air Temperature For Storage
- -40-85 °C
- Quality Labels
- ISO 9001 || ISO 14000
- Operating Altitude
- 0...3000 m
StandardsANSI C12.20 || ANSI C37.90.1 || IEC 61000-4-15 || IEC 61000-4-30 || IEC 61010-1 || IEC 61326-1 || IEC 61557-12 || IEC 61850 || IEC 62052-11 || IEC 62052-31 || IEC 62053-22 || IEC 62053-23 || IEC 62053-24 || IEC 62586 || UL 61010-1
Electromagnetic CompatibilityEMC immunity conforming to IEC 62052-11 || EMC immunity conforming to IEC 61326-1 || EMC immunity conforming to IEC 61000-6-5 || electrostatic discharge immunity test conforming to IEC 61000-4-2 || immunity to radiated fields conforming to IEC 61000-4-3 || immunity to fast transients conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || immunity to conducted disturbances conforming to IEC 61000-4-6 || immunity to magnetic fields at network frequency conforming to IEC 61000-4-8 || immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions class B conforming to EN 55032 || conducted and radiated emissions class B conforming to FCC part 15 || conducted and radiated emissions class B conforming to ICES-003 || surge withstand conforming to ANSI C37.90.1 || surge withstand conforming to IEEE C37.90.1
Relative Humidity5-95 %
Ip Degree Of ProtectionIP65 front: || IP30 rear:
Installation CategoryIII
Specifications
- Product Or Component Type
- energy and power quality meter
- Provided Equipment
- remote display || remote display adapter || mounting instructions || mounting hardware
- Device Short Name
- ION92040
RangePowerLogic
Device Applicationpower monitoring || WAGES metering || Net metering || medium voltage || high voltage
Metering Typedemand current I1, I2, I3, I4, I5 || peak demand currents || demand power P, Q, S || peak demand power PM, QM, SM || calculated active and reactive energy (+/- W.h, +/- VAR.h)
