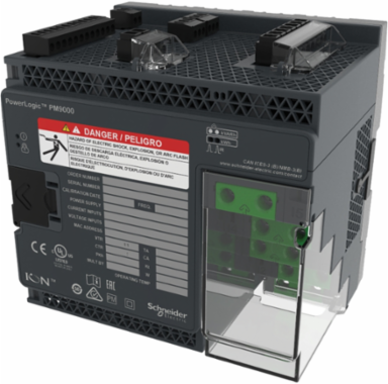

Schneider Electric METSEION93130 PowerLogic ION9000 Meter, DIN Mount, 20-60 VDC, 2 GB Memory
- MPN: METSEION93130
- PPN: SCH-METSEION93130
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerLogic ION9000 Meter, DIN Mount, 20-60 VDC, 2 GB Memory
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France
Depth135.3 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 2400...115200 bps - 2-wire, ION 2400...115200 bps - 2-wire, DNP3 2400...115200 bps - 2-wireModbus TCP 10/100 Mbit/s, ION TCP 10/100 Mbit/s, DNP3 TCP 10/100 Mbit/s, IEC 61850, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, DHCP, DNS, DLMS
- Communication Gateway
- Ethernet/serial
Communication Servicecompliant reports, power quality summary, energy report, EcoStruxure Power Events Analysis, SMTP e-mail notification, SNMP
Communication Port Support2 RS485 removable screw terminal block
Complementary Attributes
- Maximum Power Consumption In Va
- 38 W 20...60 V DC
Important Information Attributes
- Cybersecurity
- Syslog protocol support, robust security logs, port hardening, enable/disable communication ports, hardware metrology lock
- Device Application
- power monitoring, WAGES metering, Net metering, medium voltage, high voltage
- Ethernet Service
- DHCP client, Device Profile Web Services (DPWS), Rapid Scanning Tree Protocol (RSTP), FTP/HTTP/HTTPS
- Market Segment
- data center, healthcare, semiconductor, pharmaceutical, chemical, energy, mining
- Metering Type
- demand current I1, I2, I3, I4, I5, peak demand currents, demand power P, Q, S, peak demand power PM, QM, SM, calculated active and reactive energy (+/- W.h, +/- VAR.h)
- Quality Labels
- ISO 9001, ISO 14000
- Type Of Measurement
- apparent power per phasepower factor per phase, sags and swells, sags and swells, voltage, current, frequencyactive and reactive power total, apparent power total, active and reactive power per phase, power factor total, active and reactive energy, apparent energy, harmonic distortion (I THD & U THD)
- Certificate Agency
- ANSI C12.20, ANSI C37.90.1, IEC 61000-4-15, IEC 61000-4-30, IEC 61010-1, IEC 61326-1, IEC 61557-12, IEC 61850, IEC 62052-11, IEC 62052-31, IEC 62053-22, IEC 62053-23, IEC 62053-24, IEC 62586, UL 61010-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.9670001541342486
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 149 kg CO2 eq., 148.92578577480475
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310106EN_Web.pdf, PLSED310106EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Field Service Division
- DPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Display Type
- Without Display
- Energy Efficiency Optimized
- False
- Installation Category
- III
- Memory Capacity
- 2 GB
- Number Of Poles
- 3P + N + E
- Power Consumption In Va
- 15 W 20...60 V DC
- Product Name
- PowerLogic ION9000
- Range
- PowerLogic
- Sampling Rate
- 1024 samples/cycle
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 758 kg CO2 eq.
- Pep Code
- ENVPEP1801009EN
- Pep Verification Date
- 2025-05-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global
- Height Nominal
- 160 mm
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Data Recordingtime stamping, min/max of instantaneous values, user-definable, continuous logging or snapshot, trending/forecasting, event logs, alarm logs, configuration change, power outage, user login/logout, data logs, GPS synchronisation, sequence of event recording
Electromagnetic CompatibilityEMC immunity conforming to IEC 62052-11, EMC immunity conforming to IEC 61326-1, EMC immunity conforming to IEC 61000-6-5electrostatic discharge immunity test conforming to IEC 61000-4-2immunity to radiated fields conforming to IEC 61000-4-3immunity to fast transients conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5immunity to conducted disturbances conforming to IEC 61000-4-6immunity to magnetic fields at network frequency conforming to IEC 61000-4-8immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55011conducted and radiated emissions class B conforming to EN 55032, conducted and radiated emissions class B conforming to FCC part 15, conducted and radiated emissions class B conforming to ICES-003surge withstand conforming to ANSI C37.90.1, surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracyvoltage +/- 0.1 %, current +/- 0.1 %
Power Quality AnalysisIEEE 519 compliance reporting, EN 50160 compliance checkingIEEE 519 harmonic limit, IEC 61000-4-30 class A compliance reporting, waveform capture, total demand distortion, total harmonic distortion, up to the 63rd harmonic, up to the 127th harmonic with software, disturbance direction detection, dip, swell and transient, half cycle data acquisition, transient detection (20 µs)
Time Synchronisation ProtocolGPS, IRIG-B, NTP, SNTP, PTP
Web Servicesviewing of captured waveform, web page, pass/fail report for IEEE 519, pass/fail report for EN 50160, ITIC (CBEMA) curve, SEMI curve, NEMA motor derating curve, alarm notification by e-mail, TLS 1.2, push historical data via mail
Carbon Footprint Of The Distribution Phase [A4]1.2193969851359838, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.2951328961765074, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]603 kg CO2 eq., 602.9313330204241
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1801009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1840
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameION93030
Electrical Insulation Classclass III EN/IEC 62052-11
Frequency Measurement Range20-450 Hz
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting SupportDIN rail
Port Ethernet10/100BASE-TX 2 RJ45
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy and power quality meter
ReturnabilityNo
Software Versionv6.2.4
Tamperproof Of Settingsprotected by sealable cover
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe functional unit for the PowerLogicâ„¢ ION9000T meter (METSEION95040) is to provide accurate power quality monitoring and energy metering for a period of 10 years, ensuring compliance with international power quality standards and delivering high-resolution data for energy management. This includes measuring voltage and current with an accuracy of +/- 0.1%, operating at a rated supply voltage of 90...480 V AC or 110...480 V DC, and consuming approximately 11 W in active mode. The meter's lifecycle encompasses raw material extraction, manufacturing, distribution, use phase (with 100% runtime), and end-of-life disposal or recycling, with a total energy consumption calculated based on continuous operation over 10 years. This comprehensive approach allows for a detailed assessment of the environmental impacts associated with the meter.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %6
Width Nominal160 mm
Ride-through Time500 ms 60 V DC typical
Package Weight(Lbs)2.4 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP1801009EN
- Ip Degree Of Protection
- IP65 front:IP30 rear:
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1801009EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint758.3386488306755
Circularity ProfileENVEOLI1801009EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 %
Pep Verification Date2025-05-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- energy and power quality meter
ETIM
- ETIM 8
- EC004489
ETIM 9EC004489
Output Attributes
- Number Of Outputs
- 4 digital2 form C relay
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm), split core current transducer (impedance 200 kOhm)5 x
Number Of Inputs8 digital 30 V AC/60 V DC
