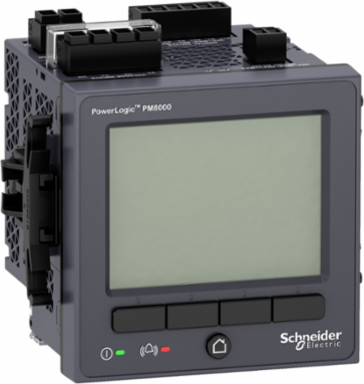

Schneider Electric METSEPM8310 Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
Schneider Electric METSEPM8310 Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
- MPN: METSEPM8310
- PPN: SCH-METSEPM8310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP54 front: conforming to IEC 60529 || IP30 body: conforming to IEC 60529
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves (2...150 Hz) conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55022 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions conforming to FCC part 15 || conducted and radiated emissions conforming to ICES-003 || conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 || surge withstand conforming to IEEE C37.90.1
Relative Humidity5-95 %
Operating Altitude9842.52 ft (3000 m)
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile
- ENVEOLI1406023EN
Environmental DisclosureENVPEP1406023EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Communication Network Type
- IPv6 (internet protocol)
- Communication Port Support
- ETHERNET || screw terminal block RS485
- Height
- 96 mm
- Sampling Rate
- 512 samples/cycle
- Memory Capacity
- 512 MB
- Product Certifications
- CE || cULus || N998
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire || ION 115 kbauds - 2-wire || DNP3 || IEC 61850 || Modbus TCP/IP || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || RSTP 801.1d 2004
- Frequency Measurement Range
- 42-69 Hz
- Display Resolution
- 320 x 240 pixels QVGA
- Net Weight
- 581 g
- Measurement Current
- 50-10000 mA
- [Us] Rated Supply Voltage
- 20...60 V DC +/- 10 %
- Measurement Accuracy
- current +/- 0.1 % || voltage +/- 0.1 % || active energy +/- 0.2 %
- Poles Description
- 3P || 1P + N || 3P + N
- Line Rated Current
- 10 A || 5 A || 1 A
- Isolation Voltage
- III400-690 V conforming to IEC 61010-1:ed. 3 || III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
- Web Services
- customizable home page || file upload/download via FTP || file upload/download via SFTP || web server || alarm notification by e-mail || viewing of captured waveform (FTP) || viewing of captured waveform (web) || HTTPS server
- Display Type
- colour TFT LCD
- Accuracy Class
- class 0.2S active energy IEC 62053-22 || class 0.2 active energy ANSI C12.20 || class 0.2 active power IEC 61557-12 || class 0.5S reactive energy IEC 62053-24 || class 0.5 power factor IEC 61557-12 || class 0.2 voltage IEC 61557-12 || class 0.2 current IEC 61557-12
Network Frequency60 Hz || 50 Hz
Power Quality AnalysisEN 50160 2010 compliance report || IEEE 519 2014 compliance report || IEC 61000-4-30 class A power quality measurement || IEEE 519 2014 up to the 63rd harmonic || harmonic distortion || waveform capture || IEC 62586 voltage sag and swell detection || EN 50160 2010 programmablity (logic and math functions) || IEC 62586 power quality monitoring || disturbance direction detection || IEC 61000-4-15 flicker || rapid voltage change
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
StandardsIEC 62052-11 || IEC 61557-12 || IEC 62053-22 || IEC 62053-24 || IEEE 1588 || IEC 62586-2 || IEC 61326-1
Number Of Outputs1 pulse
Type Of Measurementcurrent total || voltage || frequency total || active and reactive power total || apparent power total || power factor total || active and reactive power per phase, rms || apparent power per phase, rms || power factor per phase, rms
Power Consumption In W17 W
Communication ServiceNTP time synchronization || SMTP e-mail notification || DHCP || RSTP support || SNMP || PTP time synchronization
Number Of Inputs3 digital 30 V AC || 3 digital 60 V DC
Depth77.5 mm
Information Displayedvoltage || current || frequency || power || energy consumption || harmonic distortion
Mounting Modeflush-mounted
Mounting Supportframework
Data Recordingdata logs || harmonics logs || waveform logs || min/max of instantaneous values || trending/forecasting || sag and swell logs || sequence of event recording || GPS synchronisation || alarm logs || event logs || time stamping || 64 data recorders
CybersecuritySyslog protocol support || password protection || port hardening || enable/disable communication ports || robust security logs
Analogue Input Typevoltage (impedance 5 MOhm) || current (impedance 0.3 mOhm)
Width96 mm
Device Applicationpower monitoring || WAGES metering
Installation CategoryIII
Specifications
- Width
- 96 mm
- Weight
- 581 g
- Product Name
- PowerLogic PM8000
- Device Short Name
- PM8310
Height96 mm
Product Or Component Typepower meter
RangePowerLogic
