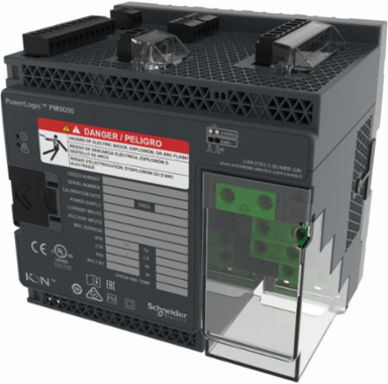

Schneider Electric METSEION93030 PowerLogic ION9000 Meter, DIN Mount, Low Voltage Input, Class 0.1S Accuracy

MPN: METSEION93030
PPN: SCH-METSEION93030
UNSPSC: 41113708

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerLogic ION9000 Meter, DIN Mount, Low Voltage Input, Class 0.1S Accuracy

Features

Fast access to timely, critical information for energy, electrical network, and asset management
Help operations personnel avoid downtime by making power quality understandable
Makes energy and power quality actionable to support your op and sustainability goals
More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
Ensure energy efficiency and optimized costs by understanding how energy is being consumed
Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
Support participation in demand response or variable tariff (TOU, RTP) programs
Maximize use of capacity by performing load studies and infrastructure expansion planning
Patented ION Programming allows for full alarm/calc customization, control and more

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada
Depth	135.3 mm

Weight	2110 g

Communications & Management Attributes

Communication Port Protocol	Modbus RTU 2400...115200 bps - 2-wire, ION 2400...115200 bps - 2-wire, DNP3 2400...115200 bps - 2-wireModbus TCP 10/100 Mbit/s, ION TCP 10/100 Mbit/s, DNP3 TCP 10/100 Mbit/s, IEC 61850, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, DHCP, DNS, DLMS
Communication Gateway	Ethernet/serial

Communication Service	compliant reports, power quality summary, energy report, EcoStruxure Power Events Analysis, SMTP e-mail notification, SNMP
Communication Port Support	2 RS485 removable screw terminal block

Complementary Attributes

Maximum Power Consumption In Va	80 VA 480 V AC

Us Rated Supply Voltage	90...480 V AC 45...66 Hz +/- 10 %90...120 V AC 400 Hz +/- 10 %110...480 V DC +/- 10 %

Important Information Attributes

Cybersecurity	Syslog protocol support, robust security logs, port hardening, enable/disable communication ports, hardware metrology lock
Device Application	power monitoring, WAGES metering, Net metering, medium voltage, high voltage
Ethernet Service	DHCP client, Device Profile Web Services (DPWS), Rapid Scanning Tree Protocol (RSTP), FTP/HTTP/HTTPS
Market Segment	data center, healthcare, semiconductor, pharmaceutical, chemical, energy, mining
Metering Type	demand current I1, I2, I3, I4, I5, peak demand currents, demand power P, Q, S, peak demand power PM, QM, SM, calculated active and reactive energy (+/- W.h, +/- VAR.h)
Power Quality Analysis	IEEE 519 compliance reporting, EN 50160 compliance checkingIEEE 519 harmonic limit, IEC 61000-4-30 class A compliance reporting, waveform capture, total demand distortion, total harmonic distortion, up to the 63rd harmonic, up to the 127th harmonic with software, disturbance direction detection, dip, swell and transient, half cycle data acquisition, transient detection (20 µs)
Time Synchronisation Protocol	GPS, IRIG-B, NTP, SNTP, PTP
Web Services	viewing of captured waveform, web page, pass/fail report for IEEE 519, pass/fail report for EN 50160, ITIC (CBEMA) curve, SEMI curve, NEMA motor derating curve, alarm notification by e-mail, TLS 1.2, push historical data via mail
Ride Through Time	100 ms 6 cycles at 60 Hz 120 V AC typical, 400 ms 24 cycles at 60 Hz 240 V AC typical, 1200 ms 72 cycles at 60 Hz 480 V AC typical
Carbon Footprint Of The End Of Life Phase C1 To C4	4 kg CO2 eq., 4.093090623581058
Carbon Footprint Of The Manufacturing Phase A1 To A3	154 kg CO2 eq., 153.65936820774473
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1801009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1840
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Device Short Name	ION93030
Electrical Insulation Class	class III EN/IEC 62052-11
Frequency Measurement Range	20-450 Hz
Measurement Voltage	57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting Support	DIN rail
Port Ethernet	10/100BASE-TX 2 RJ45
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	energy and power quality meter
Returnability	Yes
Software Version	v6.2.4
Tamperproof Of Settings	protected by sealable cover
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	160 mm
Customs Code	9028300000
Functional Unit Description	The functional unit for the PowerLogic™ ION9000T meter (METSEION95040) is to provide accurate power quality monitoring and energy metering for a period of 10 years, ensuring compliance with international power quality standards and delivering high-resolution data for energy management. This includes measuring voltage and current with an accuracy of +/- 0.1%, operating at a rated supply voltage of 90...480 V AC or 110...480 V DC, and consuming approximately 11 W in active mode. The meter's lifecycle encompasses raw material extraction, manufacturing, distribution, use phase (with 100% runtime), and end-of-life disposal or recycling, with a total energy consumption calculated based on continuous operation over 10 years. This comprehensive approach allows for a detailed assessment of the environmental impacts associated with the meter.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	963.6

Data Recording	time stamping, min/max of instantaneous values, user-definable, continuous logging or snapshot, trending/forecasting, event logs, alarm logs, configuration change, power outage, user login/logout, data logs, GPS synchronisation, sequence of event recording
Electromagnetic Compatibility	EMC immunity conforming to IEC 62052-11, EMC immunity conforming to IEC 61326-1, EMC immunity conforming to IEC 61000-6-5electrostatic discharge immunity test conforming to IEC 61000-4-2immunity to radiated fields conforming to IEC 61000-4-3immunity to fast transients conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5immunity to conducted disturbances conforming to IEC 61000-4-6immunity to magnetic fields at network frequency conforming to IEC 61000-4-8immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55011conducted and radiated emissions class B conforming to EN 55032, conducted and radiated emissions class B conforming to FCC part 15, conducted and radiated emissions class B conforming to ICES-003surge withstand conforming to ANSI C37.90.1, surge withstand conforming to IEEE C37.90.1
Isolation Voltage	III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracy	voltage +/- 0.1 %, current +/- 0.1 %
Network Frequency	50 Hz, 60 Hz
Quality Labels	ISO 9001, ISO 14000
Type Of Measurement	apparent power per phasepower factor per phase, sags and swells, sags and swells, voltage, current, frequencyactive and reactive power total, apparent power total, active and reactive power per phase, power factor total, active and reactive energy, apparent energy, harmonic distortion (I THD & U THD)
Certificate Agency	ANSI C12.20, ANSI C37.90.1, IEC 61000-4-15, IEC 61000-4-30, IEC 61010-1, IEC 61326-1, IEC 61557-12, IEC 61850, IEC 62052-11, IEC 62052-31, IEC 62053-22, IEC 62053-23, IEC 62053-24, IEC 62586, UL 61010-1
Carbon Footprint Of The Distribution Phase A4	1.258155324516834, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.3362984894535113, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	385 kg CO2 eq., 384.9242404657379
Local Publishable Date	2025-07-10
Device Type	Relay, Control & Measurement - measuring, monitoring device
Field Service Division	DPIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Product Kit Identifier	N
Display Type	Without Display
Energy Efficiency Optimized	False
Installation Category	III
Memory Capacity	2 GB
Number Of Poles	3P + N + E
Power Consumption In Va	38 VA 480 V AC
Product Name	PowerLogic ION9000
Range	PowerLogic
Sampling Rate	1024 samples/cycle
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	545 kg CO2 eq.
Database Version	2024-01
Height Nominal	160 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1801009EN
Ip Degree Of Protection	IP65 front:IP30 rear:
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1801009EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	545.271153111034
Circularity Profile	ENVEOLI1801009EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 %
Pep Verification Date	2025-05-20
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
