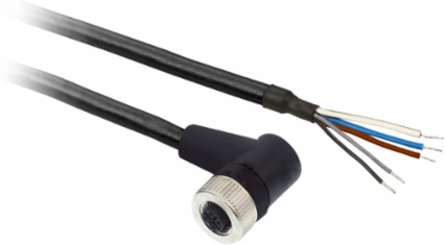

Telemecanique Sensors XZCP12V12L2 Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PUR 2 m
- MPN: XZCP12V12L2
- PPN: TES-XZCP12V12L2
- UNSPSC: 32151902
CAD
$40.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PUR 2 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.9 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 4 A
- Status Led
- without
Electrical Connectionelbowed female connector M12, 5 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length2 m
Cable Composition5 x 0.34 mm²
Contact Resistance5000 µOhm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP67 || IP69K || IP65
