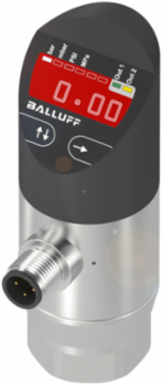

Balluff BSP B010-EV002-A02S1B-S4 Pressure Sensor with Display, 0-10 bar, IP67, 18-36 VDC
- MPN: BSP B010-EV002-A02S1B-S4
- PPN: BAL-BSP0095
CAD
$507.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor with Display, 0-10 bar, IP67, 18-36 VDC
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 18-36 VDC |
|---|---|
| Measuring Range | 0-10 bar |
| Switching Output | PNP NO/NC |
| IP Rating | IP67 |
| Media Temperature | -25 to 125 C |
| Process Connection Material | Stainless steel (1.4301) |
| Connection | Connector, M12x1-Male, 4-pin |
| Accuracy | 0.5 % FSO BFSL |
|---|---|
| Interface | IO-Link 1.1 |
| Process Connection | G 1/4" (DIN 3852) |
| Ambient Temperature | -25 to 85 C |
| Housing Material | PA 6.6 |
| Approval/Conformity | CE, cULus, WEEE |
