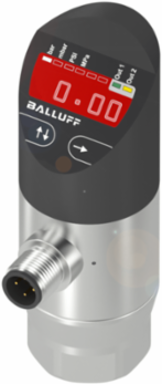

Balluff BSP V010-GV002-A02A0B-S4 Pressure Sensor with Display, 1/4" NPT, -1-10 bar, IP67, Stainless Steel
- MPN: BSP V010-GV002-A02A0B-S4
- PPN: BAL-BSP005J
CAD
$510.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor with Display, 1/4" NPT, -1-10 bar, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
| Measuring Range | -1 to 10 bar |
|---|---|
| Overload Pressure | 20 bar |
| Repeat Accuracy | 0.2 % FSO |
| Resolution | 12 bits |
| Operating Voltage | 18-36 VDC |
| Switching Output | PNP NO/NC |
| Output Current Max | 500 mA |
| Ambient Temperature Range | -25 to 85 C |
| Process Connection | 1/4" NPT |
| Weight | 230 g |
| Connection | Connector, M12x1-Male, 4-pin |
| Connector Housing Material | Stainless Steel (1.4307) |
| Measuring Cell Material | Ceramic Al2O3 |
| Protection Class | Class III |
| MTTF (40 C) | 368 years |
| Burst Pressure | 35 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Long-term Stability | 0.3 % FSO/year |
| Sampling Rate | 1 ms |
| Analog Output | Analog, current 4 20 mA |
| Switching Frequency | 200 Hz |
| Current Draw Max | 50 mA |
| Media Temperature Range | -25 to 125 C |
| Process Connection Material | Stainless Steel (1.4301) |
| Tightening Torque Max | 5 Nm |
| Housing Material | PA 6.6 |
| Gasket Material | Fluoroelastomer |
| IP Rating | IP67 |
| Storage Temperature Range | -40 to 85 C |
| Compliance | CE, cULus, WEEE |
