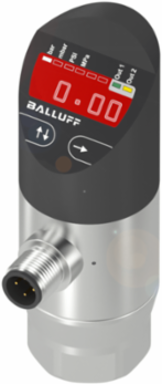

Balluff BSP B250-EV002-D00A0B-S4-003 Pressure Sensor with Display, 0-250 bar, IP67, Stainless Steel
- MPN: BSP B250-EV002-D00A0B-S4-003
- PPN: BAL-BSP00F9
CAD
$489.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor with Display, 0-250 bar, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-250 bar
- Burst Pressure
- 750 bar
- Operating Voltage
- 18-36 VDC
- Repeat Accuracy
- b1 0.2 % FSO
- Sampling Rate
- 1 ms
- Output Current Max
- 500 mA
- Protection Class
- III
- Media Temperature
- -25-125 b0C
- Connection
- Connector, M12x1-Male, 4-pin
- Storage Temperature
- -40-85 b0C
- IP Rating
- IP67
- Housing Material
- PA 6.6
- Measuring Cell Material
- Ceramic Al2O3
- Approval/Conformity
- CE, cULus, WEEE
Overload Pressure400 bar
Accuracyb10.5 % FSO BFSL
Switching Output2x PNP NO/NC
Resolution 12 bits
Current Draw Max50 mA
Switching Frequency200 Hz
Ambient Temperature-25-85 b0C
Process ConnectionG 1/4" (DIN 3852)
Media Temperature-25-125 b0C
Weight230 g
Process Connection MaterialStainless steel (1.4301)
Connector Housing MaterialStainless Steel (1.4307)
Gasket MaterialFluoroelastomer
MTTF (40 b0C)368 years
