Balluff BSP B100-EV002-D00A0B-S4-003 Pressure sensors with display BSP B100-EV002-D00A0B-S4-003
- MPN: BSP B100-EV002-D00A0B-S4-003
- PPN: BAL-BSP00F8
CAD
$489.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

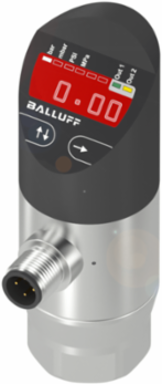

Pressure sensors with display BSP B100-EV002-D00A0B-S4-003
Documentation & Downloads
Specifications
Key Specifications
- Measuring range
- 0-100 bar
- Operating voltage Ub
- 18-36 VDC
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection material
- Stainless steel (1.4301)
- Media temperature
- -25-125 °C
- IP rating
- IP67
Accuracy±0.5 % FSO BFSL
Switching output2x PNP NO/NC
Process connectionG 1/4" (DIN 3852)
Housing materialPAPA 6.6
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
