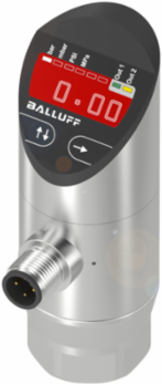

Balluff BSP B600-EV003-A02A0B-S4 Pressure sensors with display BSP B600-EV003-A02A0B-S4
- MPN: BSP B600-EV003-A02A0B-S4
- PPN: BAL-BSP0030
CAD
$644.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure sensors with display BSP B600-EV003-A02A0B-S4
Documentation & Downloads
Specifications
Key Specifications
| Measuring range | 0-600 bar |
|---|---|
| Operating voltage Ub | 18-36 VDC |
| Switching output | PNP NO/NC |
| Process connection | G 1/4" (DIN 3852) |
| Housing material | Stainless steel (1.4301)PA 6.6 |
| Ambient temperature | -40-85 °C |
| Approval/Conformity | CE, WEEE |
| Accuracy | ±0.5 % FSO BFSL |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection material | Stainless steel (1.4301) |
| Media temperature | -40-125 °C |
| IP rating | IP67 |
