Balluff BSP B250-IV003-A02S1B-S4 Front flush pressure sensors BSP B250-IV003-A02S1B-S4
- MPN: BSP B250-IV003-A02S1B-S4
- PPN: BAL-BSP00MJ
CAD
$913.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

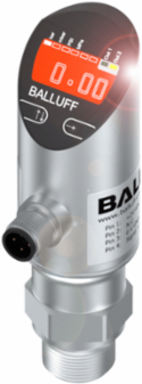

Front flush pressure sensors BSP B250-IV003-A02S1B-S4
Documentation & Downloads
Specifications
Key Specifications
- Measuring range
- 0-250 bar
- Operating voltage Ub
- 18-36 VDC
- Analog output
- Analog, current 4…20 mA
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection material
- Stainless steel (1.4404)
- Media temperature
- -40-125 °C
- IP rating
- IP67
Accuracy±0.5 % FSO BFSL
InterfaceIO-Link 1.1
Switching outputPNP NO/NC
Process connectionG 1/2" (DIN 3852) front-flush
Housing materialStainless steel (1.4301)PA 6.6
Ambient temperature-40-85 °C
Approval/ConformityCE, cULus, WEEE
