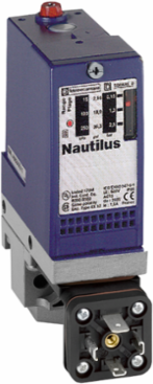

Telemecanique Sensors XMLA020A2C11 pressure switch XMLA 20 bar - fixed scale 1 threshold - 1 C/O
- MPN: XMLA020A2C11
- PPN: TES-XMLA020A2C11
- UNSPSC: 39122210
CAD
$334.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 5 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 C/O
- Pressure Actuator
- diaphragm
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Switch Type Of Operation
- detection of 1 single threshold
- Adjustable Range Of Switching Point On Falling Pressure
- 0.6-19 bar
- Local Display
- with
- Pressure Sensor Size
- 20 bar
- Scale Type
- fixed differential
- Enclosure Material
- zinc alloy
- Maximum Permissible Accidental Pressure
- 45 bar
- Device Short Name
- XMLA
Pressure Sensor Typeelectromechanical pressure sensor
Electrical Connection1 male connector EN 175301-803-A (ex DIN43650), 4 pins
Line Rated Current3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Product Or Component Typeelectromechanical pressure sensor
Materials In Contact With Fluidbrass || nitrile || zinc alloy
Fluid Connection TypeG 1/4 (female) ISO 228
Controlled Fluidair 0-70 °C) || fresh water 0-70 °C) || hydraulic oil 0-70 °C)
Electrical Circuit Typecontrol circuit
Adjustable Range Of Switching Point On Rising Pressure1-20 bar
Destruction Pressure90 bar
Complementary
- Repeat Accuracy
- 2 %
- Short-Circuit Protection
- 10 A cartridge fuse gG (gl)
- Contacts Material
- silver contacts
- Net Weight
- 0.715 kg
- Maximum Permissible Pressure - Per Cycle
- 25 bar
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14
- Mechanical Durability
- 5000000 cycles
- Depth
- 75 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A
Height113 mm
Natural Differential At High Setting1 bar +/- 0.1 bar)
Auxiliary Contacts Operationsnap action
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Maximum Operating Rate120 cyc/mn
Settingexternal
Width35 mm
Natural Differential At Low Setting0.4 bar +/- 0.2 bar)
Environment
- Product Certifications
- CCC || BV || CSA || EAC || LROS (Lloyds register of shipping) || UL
- Standards
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || CE
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Operating Position
- any position
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 conforming to EN/IEC 60529
Protective TreatmentTC standard version
Electrical Shock Protection Classclass I IEC 1140 || class I IEC 536 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110914EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
