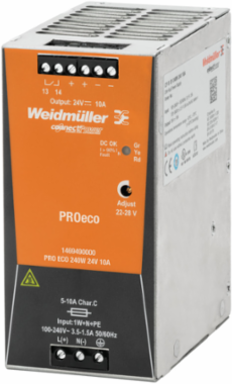

Weidmuller 1469490000 PRO ECO 240W 24V 10A
- MPN: 1469490000
- PPN: WDM-1469490000
CAD
$313.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Power supply, switch-mode power supply unit, 24 V
Documentation & Downloads
Specifications
Additional
- Power
- 240 W
- Output Voltage Range
- 22–28 V (adjustable)
- Frequency Range
- 47–63 Hz
- DC Current Consumption
- 1.18 A @ 370 V DC, 2.4 A @ 120 V DC
- Efficiency
- 90%
- Power Loss, Nominal Load
- 24 W
- Voltage
- 24 V DC ± 1%
- Surge Protection
- Varistor
- Shock Resistance
- 15 g IEC 60068-2-27
- Pollution Severity
- 2
- Storage Temperature
- -40 °C to 85 °C
- Weight
- 1018.5 g
- Input Terminals
- 3 (L/N/PE)
- Conductor Cross Section Input
- 0.5 – 6 mm² (flexible min 0.5 mm², flexible max 2.5 mm², rigid max 6 mm²)
- Tightening Torque
- 0.5 – 0.6 Nm
- Degree of Protection
- IP20
- Compliance
- RoHS, UL Listed (E258476), CE, cULus, UKCA
- Insulation Voltage Input/Earth
- 2 kV
- Certifications and Approvals
- CE, CULUS, EAC, TUEV, UL File Number E258476
- Max Permissible Air Humidity
- 5–95% RH
- Protection Against Reverse Voltages
- 30–35 V DC
- MTBF
- > 500,000 h IEC 61709

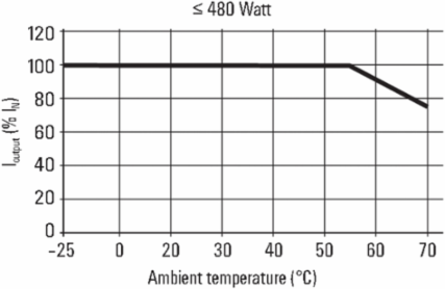

Continuous Output Current10 A @ 55 °C, 6.25 A @ 70 °C

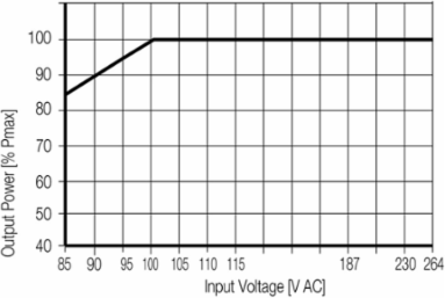

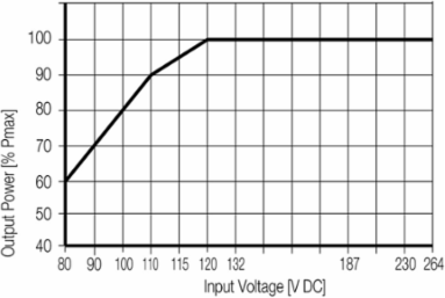

Input Voltage Range85–264 V AC, 80–370 V DC
AC Current Consumption1.23 A @ 230 V AC, 2.47 A @ 110 V AC
Inrush Current Max15 A
Power Loss, Idling2 W
Power Factor> 0.94 @ 230 V AC, > 0.99 @ 115 V AC
ProtectionOverload, short-circuit, over-heating, inverse voltage
Protection ClassClass I, with PE connection
Vibration Resistance1 g IEC 60068-2-6
Operating Temperature-25 °C to 70 °C
Dimensions125 mm H x 60 mm W x 100 mm D (4.921 x 2.362 x 3.937 in.)
Connection SystemScrew connection (input and output)

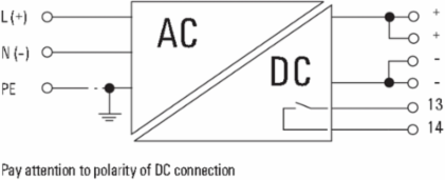

Output Terminals6 (++, --, 13, 14)
Conductor Cross Section Output0.5 – 6 mm² (rigid min 0.5 mm², rigid max 6 mm²)
Housing TypeMetal, corrosion resistant
Noise EmissionEN55032 Class B
Insulation Voltage Input/Output3 kV
Insulation Voltage Output/Earth0.5 kV
Electrical Safety StandardsVDE0100-410, DIN57100-410, EN 61558-2-16, EN 60950, EN 60204
Mounting TypeTerminal rail TS 35
Capacitive LoadUnrestricted
