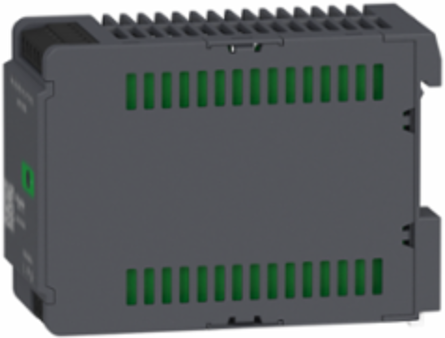

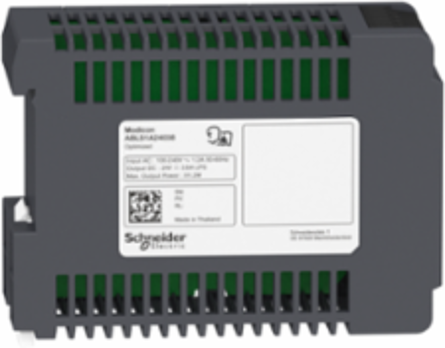

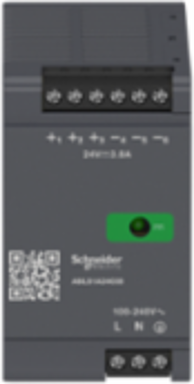

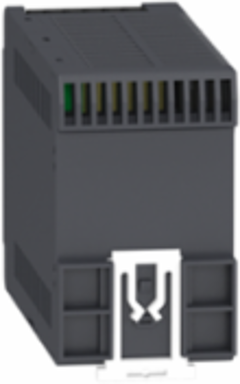

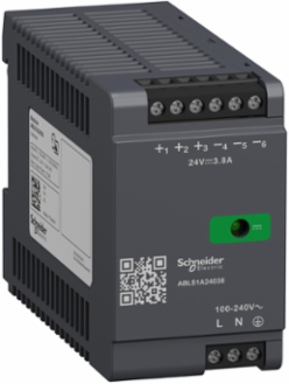

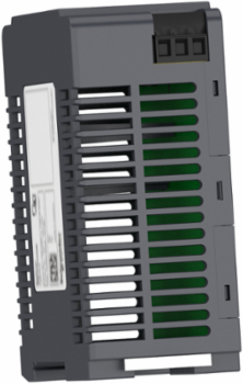

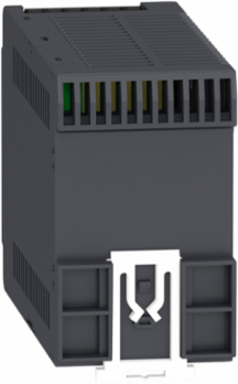

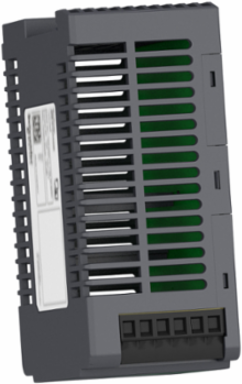

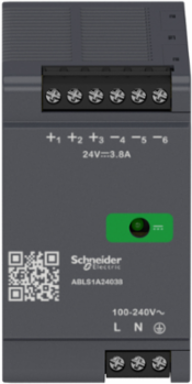

Schneider Electric ABLS1A24038 Regulated Power Supply 24V DC, 3.8A, 91.2W, DIN Rail Mounting
- MPN: ABLS1A24038
- PPN: SCH-ABLS1A24038
CAD
$210.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Regulated Power Supply 24V DC, 3.8A, 91.2W, DIN Rail Mounting
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, India, Singapore, Thailand, United States
Depth100 mm
Complementary Attributes
- Maximum Leakage Current
- 1 mA 240 V AC
Rated Power In W91.2 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 1.2 A 115 V AC, < 1.2 A 115 V AC, < 1.2 A 115 V AC, < 0.6 A 230 V AC, < 0.6 A 230 V AC, < 0.6 A 230 V AC< 1.2 A 115 V AC, < 1.2 A 115 V AC, < 1.2 A 115 V AC, < 0.6 A 230 V AC, < 0.6 A 230 V AC
- Efficiency
- 87 % 115 V AC, 89 % 230 V AC
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
- Inrush Current
- 45.0 A 115 V, 70.0 A 230 V
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
- Residual Ripple
- < 75 mV, < 75 mV
- Supply
- SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
- Certificate Agency
- CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, NEC class 2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1475210034938676, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.003936604130490754
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 643 kg CO2 eq., 642.6166134996078
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2001002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Dielectric Strength
- 3000 V AC with input to output
- Electrical Shock Protection Class
- class I
- Load Capacitance
- 3000 µF
- Overvoltage Category
- II
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Returnability
- Yes
- Shock Resistance
- 150 m/s² 11 ms
- Status Led
- 1 LED (Green) output voltage
- Total Lifecycle Carbon Footprint
- 654 kg CO2 eq.
- Pep Code
- ENVPEP2001002EN
- Pep Verification Date
- 2025-09-18
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 75 mm
- Connections - Terminals
- screw connection 0.5...2.5 mm², AWG 20...AWG 14) input/output
- Package Weight(Lbs)
- 374.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Earthing SystemTN, TT, IT
Electromagnetic Compatibilityimmunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Holding Time> 20 ms 100 V AC, > 20 ms 100 V AC, > 20 ms 100 V AC, > 50 ms 230 V AC, > 50 ms 230 V AC, > 50 ms 230 V AC> 20 ms 100 V AC, > 20 ms 100 V AC, > 20 ms 100 V AC, > 50 ms 230 V AC, > 50 ms 230 V AC
Line And Load Regulation< 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 2 % network full voltage range in line at 25 °C, < 2 % network full voltage range in line at 25 °C, < 2 % network full voltage range in line at 25 °C< 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 2 % network full voltage range in line at 25 °C, < 2 % network full voltage range in line at 25 °C
Power Factor0.90 at 115 V AC, 0.85 at 230 V AC
Response Time< 3 s, < 3 s
Vibration Resistance3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
Meantime Between Failure [Mtbf]1500000 h at 25 °C, full load conforming to SR 332, 600000 h at 55 °C, 80 % load conforming to SR 332
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9357319741253928, 0.9 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.43627653154866
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Efficiency At Full Load85...264 V AC
Enclosure MaterialPlastic
Network Frequency Limits50-60 Hz
Power Dissipation In W13 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Power Supply
Service Life10 year(s)
Software Versionv6.2.5-6
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024/01/20
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %4
Width Nominal45 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m)-20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), 55-70 °C with current derating of 3.33 % per °C mounting position A < 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2001002EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- < 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2001002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint654.1400796129061
Environmental DisclosureENVPEP2001002EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-18
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540
Output Attributes
- Output Protection Type
- against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 3.8 A
Output Couplingserial
Output Voltage Limits24 V
Input Attributes
- Efficiency
- 87 % 115 V AC, 89 % 230 V AC
- Input Voltage
- 100...240 V AC single phase, 100...240 V AC phase to phase
Input Protection Typeintegrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C
Efficiency At Full Load85...264 V AC
