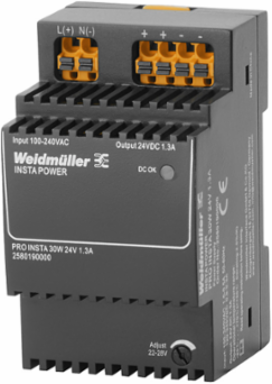

Weidmuller 2580190000 PRO INSTA 30W 24V 1.3A
Weidmuller 2580190000 PRO INSTA 30W 24V 1.3A
- MPN: 2580190000
- PPN: WDM-2580190000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.31/ EA
Specifications
General Data
- Degree of efficiency
- 86%
- MTBF
- > 750.000 h nach IEC 61709 (SN29500)
- Operating temperature
- -25 °C...70 °C
- Power loss, nominal load
- 4.88 W
- Protection degree
- IP20
Housing versionPlastic, protective insulation
Mounting position, installation noticeHorizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load
Power loss, idling0.45 W
Protection against reverse voltages from the load30…35 V DC
Signalling
- LED green
- Operating voltage OK
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , min.
- 0.25 mm²
- Conductor cross-section, rigid , min.
- 0.25 mm²
- Number of terminals
- 2 (L,N)
Conductor cross-section, AWG/kcmil , min.24
Conductor cross-section, rigid , max.2.5 mm²
Connection systemPUSH IN
Wire connection cross section, flexible (input), max.2.5 mm²
Approvals
- Approvals
- CCSAUS, TUEV
ROHSConform
Dimensions And Weights
- Width
- 54 mm
- Height
- 90 mm
- Depth
- 60 mm
- Net weight
- 192 g
Width (inches)2.126 inch
Height (inches)3.543 inch
Depth (inches)2.362 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Protection against dangerous shock currents
- Acc. to VDE0106-101
- Safety transformers for switch-mode power supplies
- According to EN 61558-2-16
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Emc / Shock / Vibration
- Limiting of mains voltage harmonic currents
- EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips)
- Vibration resistance IEC 60068-2-6
- 2.3 g
- Shock resistance IEC 60068-2-27
- 15 g In all directions
Noise emission in accordance with EN55032Class B
Interference immunity test acc. toEN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips)
Input
- AC current consumption
- 0.5 A @ 230 V AC / 1.0 A @ 100 V AC
- Connection system
- PUSH IN
- DC input voltage range
- 95…370 V DC
- Input fuse (internal)
- Yes
- Rated input voltage
- 100 - 240 V AC / 120 - 340 V DC
AC input voltage range85...264 V AC (derating at 100 V AC)
DC current consumption0.2 A @ 370 V DC / 0.5 A @ 120 V DC
Frequency range AC45…65 Hz
Inrush currentmax. 40 A
Recommended back-up fuse2 A / DI, safety fuse6 A, Char. B, circuit breaker2...4 A, Char. C circuit breaker
Classifications
- ETIM 6.0
- EC002540
- eClass 9.0
- 27-04-07-01
- eClass 10.0
- 27-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01
Output
- Capacitive load
- unrestricted
- Continous output current @ U
- 1.3 A @ 55 °C, 0.8 A @ 70 °C
- Output voltage
- 22...28 V (adjustable via potentiometer on front)
- Rated output voltage
- 24 V DC ± 1 %
Connection systemPUSH IN
Nominal output current for U1.3 A @ 55 °C
Ramp-up time≤ 100 ms
Residual ripple, breaking spikes< 50 mVss @ UNenn, Full Load
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Insulation voltage input / earth
- 3.5 kV
- Insulation voltage, input/output
- 4 kV
- Protection class
- II
Insulation voltage output / earth0.5 kV
Pollution severity2
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN
Conductor cross-section, AWG/kcmil , min.24
Conductor cross-section, flexible , min.0.25 mm²
Conductor cross-section, rigid , min.0.25 mm²
Number of terminals4 (++ / --)
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...70 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
