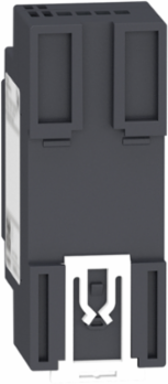

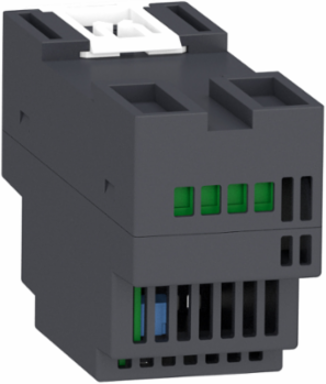

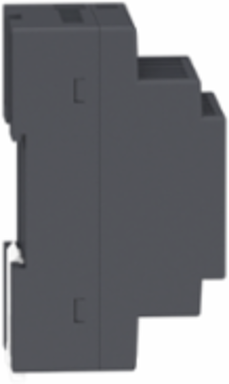

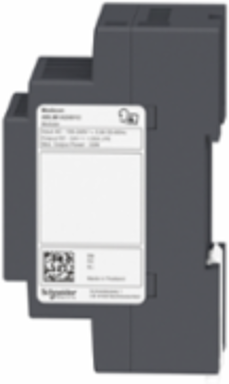

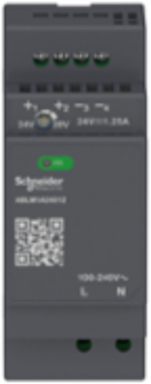

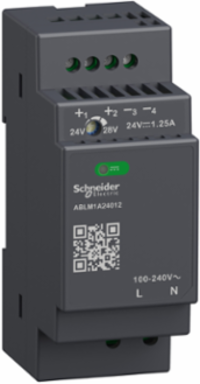

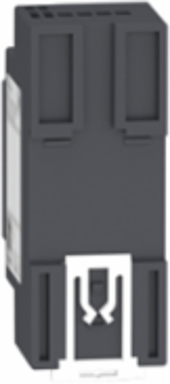

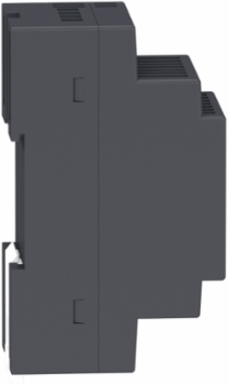

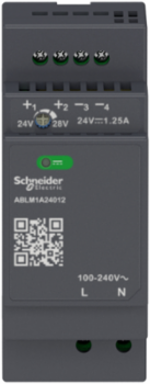

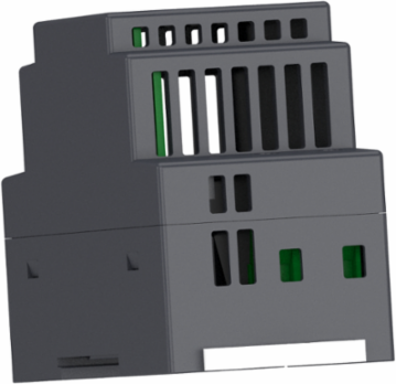

Schneider Electric ABLM1A24012 Regulated Power Supply 24V DC, 1.25A, 30W, 91mm Height
- MPN: ABLM1A24012
- PPN: SCH-ABLM1A24012
CAD
$145.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1,25A at 24V DC and a rated power output of 30W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Engineered at an exceptionally lean 27 mm wide, this modular switch-mode power supply occupies minimal real estate on a standard double-profile DIN rail. This compact, book-size design allows control panel builders and industrial automation engineers to maximize internal enclosure space, leaving plenty of room for supplementary relays, PLCs, and terminal blocks without upgrading to a larger, more expensive cabinet.
- This 30W regulated power module delivers a highly stable 24V DC output at 1.25A and is fully certified to meet NEC Class 2, cULus, and CSA requirements. By inherently limiting its output power to prevent electrical shock and fire hazards, it classifies as a Safety Extra-Low Voltage (SELV) source—allowing you to simplify your field wiring layouts and reduce installation costs by eliminating the need for heavy-duty conduits or external overcurrent protection.
- Featuring a wide, universal input voltage range from 100V to 240V AC (single-phase), this Modicon ABLM power supply effortlessly adapts to a vast array of global power supply infrastructures. It provides reliable, ripple-free direct current even during minor line sags or grid fluctuations, making it the perfect standardized component for machinery and automated systems deployed throughout Canada and international markets.
- Designed for continuous, maintenance-free operation in demanding industrial environments, this power supply operates reliably in temperatures ranging from -25°C to up to +70°C (with standard ambient derating). This exceptional thermal resilience prevents nuisance shutdowns inside tightly sealed panels, while a convenient, front-facing green LED diagnostic light gives maintenance technicians instant, at-a-glance confirmation that the output voltage is active and stable.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon Power Supply
- Product Or Component Type
- power supply
- Input Voltage
- 100...240 V AC single phase || 100...240 V AC phase to phase
- Rated Power In W
- 30 W
Output Voltage24 V DC
Power Supply Typeregulated switch mode
Power Supply Output Current1.25 A
Enclosure Materialplastic
Complementary
- Output Coupling
- serial || parallel
- Residual Ripple
- < 100 mV
- Holding Time
- > 20 ms 115 V AC || > 60 ms 230 V AC
- Earthing System
- TN || TT || IT
- Dielectric Strength
- 3000 V AC input/output
- Current Consumption
- < 0.8 A 115 V AC || < 0.6 A 230 V AC
- Net Weight
- 0.170 kg
- Input Protection Type
- integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 4 A Curve B || external protection (recommended) 4 A Curve C
- Service Life
- 10 year(s)
- Power Dissipation In W
- 5 W
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
- Response Time
- < 2 s
- Width
- 36 mm
- Inrush Current
- 25 A 115 V || 50 A 230 V
- Depth
- 55.6 mm
Height91 mm
Status Led1 LED (green) output voltage
Input Voltage Limits90...264 V AC
Connections - Terminalsscrew connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output || screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
Network Frequency Limits50-60 Hz
SupplySELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Maximum Leakage Current0.25 mA 240 V AC
Output Protection Typeagainst overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Meantime Between Failure [Mtbf]2500000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
Output Voltage Limits24...28 V
Load Capacitance3000 µF
Line And Load Regulation< 0.5 % network in line || < 1 % network 0 to 100 % load
Overvoltage CategoryII
Efficiency87 % 115 V AC || 87 % 230 V AC
Power Factor0.48 at 115 V AC || 0.38 at 230 V AC
Environment
- Standards
- IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
- Product Certifications
- CE || cUL listed || cUL recognized || RCM || CB Scheme || EAC || KC || NEC class 2
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 || immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 || immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11 || immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11 || immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to IEC 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
- Operating Altitude
- < 2000 m overvoltage category III || 2000 m...5000 m overvoltage category II
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Ambient Air Temperature For Operation-25-55 °C without current derating mounting position A < 2000 m || 55-70 °C with current derating of 2.67 % per °C mounting position A < 2000 m
Pollution Degree2
Shock Resistance150 m/s² 11 ms
Ip Degree Of ProtectionIP20
Electrical Shock Protection Classclass II without PE connection
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2004005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2004005EN
