Klein Tools VDV500-163 Digital Tone Generator - Wire Tracing, 3 Tones, 0.33 lbs, ABS Material
- MPN: VDV500-163
- UPC: 092644583896
- PPN: KLT-VDV500-163
- UNSPSC: 41111917
CAD
$128.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

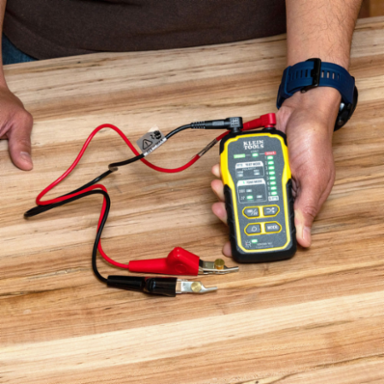

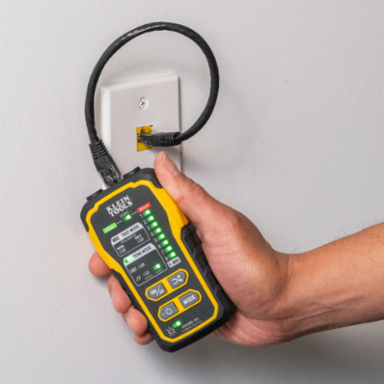

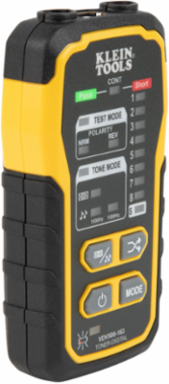

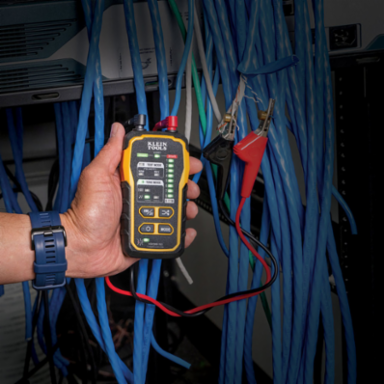

Use Klein Tools Digital Tone Generator for wire identification, wire tracing and wire pair identification. When used with the Digital Tracing Probe (Cat. No. VDV500-223; sold separately), you can trace and locate cables on an active network and wire map to check Pin-to-Pin connections with shield detection and features angled bed-of-nails (ABN) clips to securely attach to wires. Use the RJ45 port to easily test RJ45, RJ11, and RJ12 data cables.
Features
- Digital tone generator traces and locates cables on an active network when used with Digital Tracing Probe (Cat. No. VDV500-223; sold separately)
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection (requires Digital Tracing Probe, (Cat. No. VDV500-223; sold separately)

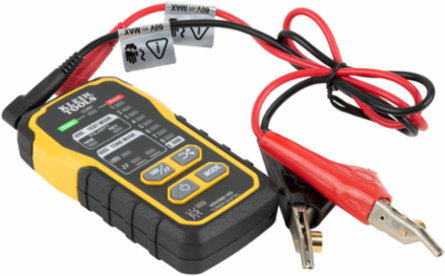

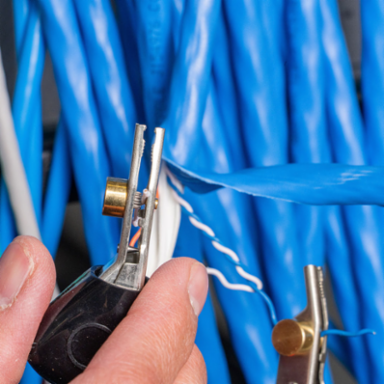

- Rugged Angled Bed of Nails (ABN) clips securely attach to wires

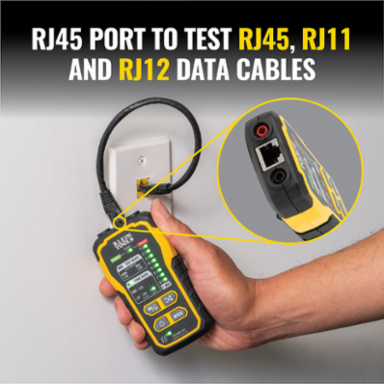

- RJ45 port to test RJ45, RJ11 and RJ12 data cables
- Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
- Three distinct tone cadences
- Auto Power-Off and Low Battery Indicator
- Performs Analog and Digital Toning
Documentation & Downloads
Specifications
Key Specifications
| Material | ABS |
|---|---|
| Power On LED Indicator | Yes |
| Replaceable Tip | No |
| Continuity Testing | Yes |
| Tones | 3 |
| Adjustable Volume | No |
| Self-Storing Remote | No |
| Application | Wire Toning |
| Overall Width | 2.8 cm (1.1 Inch) |
| Overall Length | 5.6 cm (2.2 Inch) |
| Width | 2.2300 in |
| Weight | 0.3300 lbs |
| Battery Life | 20 hr |
|---|---|
| Type | Digital Wire Tracing |
| Amplifier Overload Indication | No |
| Auto-Power Off | Yes |
| Batteries | 4 x AAA |
| Visual Notification | LED |
| Low Battery Indicator | Yes |
| Included | Tone Generator; 4 x AAA Batteries |
| Overall Height | 4.7 Inch (11.9 cm) |
| Height | 1.1000 in |
| Depth | 4.6700 in |
