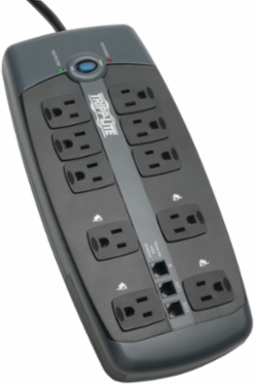

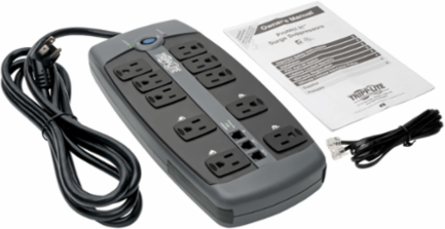

Tripp Lite TLP1008TEL 10-Outlet Surge Protector, 2395 Joules, 8 ft. Cord, Black Housing
Tripp Lite TLP1008TEL 10-Outlet Surge Protector, 2395 Joules, 8 ft. Cord, Black Housing
- MPN: TLP1008TEL
- UPC: 037332119063
- PPN: TRP-TLP1008TEL
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$93.85/ EA
Description
Safeguard your PC, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise. Built-in RJ11 jacks also protect your telephone, fax machine and modem from surges.
Features

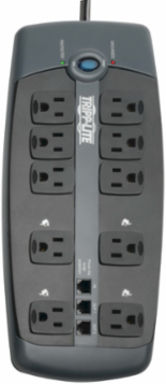

- 10 NEMA 5-15R outlets, including 4 for bulky transformers
- 2395-joule surge protection rating
- Filters out threatening EMI/RFI line noise
- 15A resettable circuit breaker prevents dangerous overloads

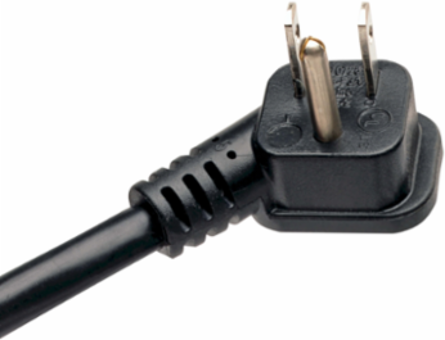

- 8 ft. AC power cord with right-angle NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $150,000 Ultimate Lifetime Insurance
- 2395-Joule Surge Protection for Home or Office Electronics
- 10 Outlets Accept Wide Range of Electronic Devices

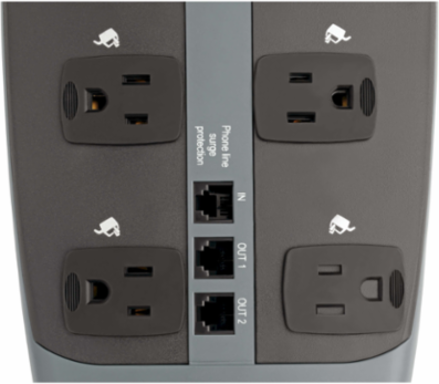

- Telephone/DSL Protection
- Premium Safety Features

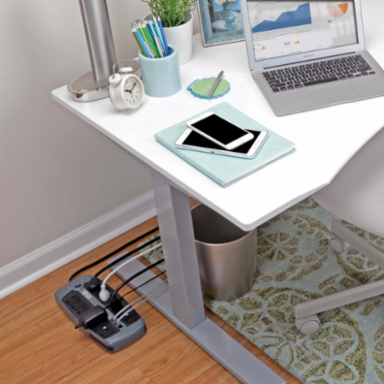

- Fits Effortlessly Into Your Workstation
- Backed by Tripp Lite’s Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 2395
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- UL1449 Let Through Rating
- 400V - UL Verified
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd Edition
- UL497A (Communications)
- UL497A
- Canada
- cUL
- Approvals
- Exceeds IEEE 587 category A&B specifications
UL1363 (Power Tap)UL1363
FCC Part 68 (Communications)FCC Part 68
Industry Canada (Communications)Industry Canada
Dataline Surge Suppression
- Telephone/DSL Protection
- Yes
- Cable (Coax) Protection
- No
Telephone/DSL Protection Details1 line
Network (Ethernet) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black

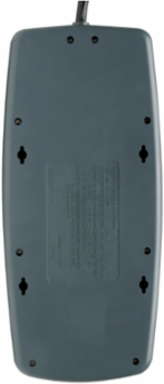

- Integrated Keyhole Mounting Slots
- Yes
- Material of Construction
- Plastic
- Receptacle Color
- Black
- Shipping Weight (lbs.)
- 2.40
- Unit Weight (lbs.)
- 2
ColorBlack
Housing ColorBlack
Keyhole Slot Mounting Measurement (Center to Center)108mm
Outlets Measurement (Center to Center)Between Standard Outlets = 28.4mm; Between Standard and Transformer Outlets = 56.8mm
Shipping Dimensions (hwd / in.)14.30 x 1.75 x 8.20
Unit Dimensions (hwd / in.)12 x 5.25 x 2
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details

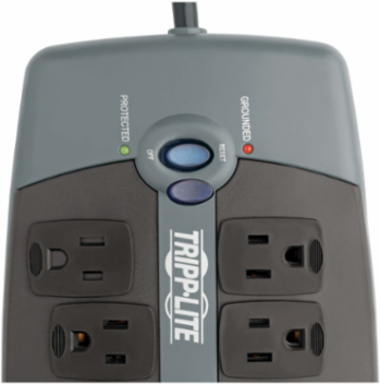

- Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
SwitchesCombination AC circuit breaker and two-position on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 120000
- Input Cord Length (ft.)
- 8
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120
Input Plug TypeNEMA 5-15P
Right-Angle PlugYes
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (10) 5-15R
- Overload Protection
- 15A resettable circuit breaker
- Outlet Orientation

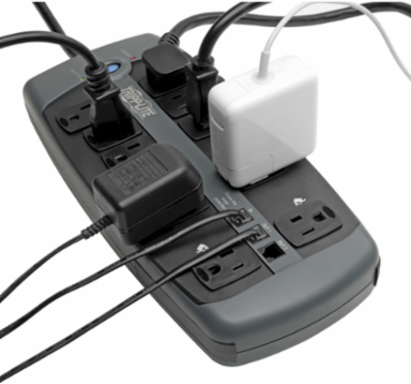

- Two rows of outlets, including 4 widely spaced for transformers
Output (Watts)1800
Circuit Breaker (amps)15
Transformer Accommodation(8) Yes
Right-Angle OutletsNo
Overview
- UPC Code
- 037332119063
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$150,000 Ultimate Lifetime Insurance
