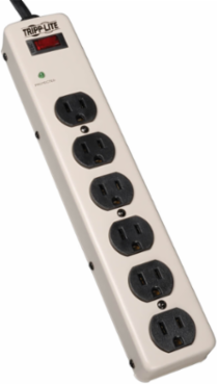

Tripp Lite PM6SN1 6-Outlet Commercial-Grade Surge Protector, 6-ft. Cord, 900 Joules, 12.5-in. length
Tripp Lite PM6SN1 6-Outlet Commercial-Grade Surge Protector, 6-ft. Cord, 900 Joules, 12.5-in. length
- MPN: PM6SN1
- UPC: 037332101013
- PPN: TRP-PM6SN1
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$75.90/ EA
Description
6-Outlet Commercial-Grade Surge Protector, 6-ft. Cord, 900 Joules, 12.5-in. length
Features
- 6 outlets/6 ft. cord
- 900 joule rating
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 900
- UL1449 Let Through Rating
- 400V - UL Verified
- Immunity
- Conforms to IEE 587 / ANSI C62.41
Protection ModesIncludes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
EMI / RFI FilteringUp to 20 dB
Automatic Shut-OffYes
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd Edition
- Canada
- cUL
UL1363 (Power Tap)UL1363
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black
- Keyhole Slot Mounting Measurement (Center to Center)
- 165mm
- Outlets Measurement (Center to Center)
- 38.89mm
- Shipping Dimensions (hwd / in.)
- 2.25 x 15.00 x 6.00
- Unit Dimensions (hwd / in.)
- 12.5 x 2.5 x 1.5
ColorBeige
Integrated Keyhole Mounting SlotsYes
Material of ConstructionMetal
Receptacle ColorBlack
Shipping Weight (lbs.)1.50
Unit Weight (lbs.)1.25
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details
- Protection present (green)
SwitchesCombination AC circuit breaker and lighted two position power switch controls power to all outlets
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 45000
- Input Cord Length (ft.)
- 6
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120
Input Plug TypeNEMA 5-15P
Right-Angle PlugNo
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (6) 5-15R
- Transformer Accommodation
- (2) Yes
Output (Watts)1800
Circuit Breaker (amps)15
Right-Angle OutletsNo
Overview
- UPC Code
- 037332101013
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Downloads
