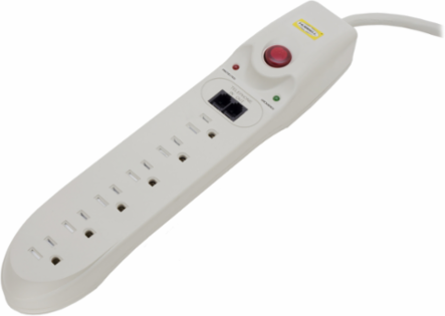

Hubbell Wiring Device-Kellems HBL6PS1050MA Surge Protective Plug Strip, 15A 125V, 6 Outlet, 1050 Joules, 6' Cord
Hubbell Wiring Device-Kellems HBL6PS1050MA Surge Protective Plug Strip, 15A 125V, 6 Outlet, 1050 Joules, 6' Cord
- MPN: HBL6PS1050MA
- UPC: 783585120546
- PPN: HBL-HBL6PS1050MA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$104.46/ EA
Description
Surge Protective Devices, SPIKESHIELD TVSS Plug Strips, 15A 125V, 6 Outlet with Telephone/Fax, 6' Cord, Office White
Features
- 1050 joule, 6 foot cord, $5,000 down-line warranty
- Tamper tamper resistant shutters.
- 6' Cord
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL6PS1050MA AutoCAD Drawing
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Performance
- Electrical - Max Surge Current - 19.5kA;Electrical - Max. Operating Voltage - 130;Electrical - Operating Frequency - 50/60Hz;Environmental - Operating Temperature - -40°F to 160°F (-40°C to 70°C)
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- 6' Cord
- Connectivity
- Plug-In
- Display Size
- 1050 Joules
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL6PS1050M
- Material - Mounting Hardware
- Portable
- Indicator(s) Type
- LED Indicator
- Series
- Economy Surge Strips
- BOX SIZE
- 2.400x13.900x5.600 (in)
- Carton - Number of Sub Packs
- 12
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585120546
- Case Weight
- 1.450 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 696.000 lb.
General Literature Asset 1 Display TextSpikeShield® Surge Protective Devices
ColorOffice White
Width5.600 in
Application6 Outlet, Standard Devices
Frequency Rating60 Hz
OutletStraight Blade 5-15R
Response Time5
TypeNon-Metallic
Cord Length6 ft
Number Of Outlets6
Description - InvoiceSPD STRP, 6 RCPT, 1050 J, TEL/FAX, 6'
Harmonization Code8537109999
MSDS FlagNo
Sub Class CodeA44A430
Current Rating15 A
MaterialNon-Metallic
Base Unit of MeasureEA
Carton - Gross Weight per Pack19.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units12 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585120545
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
