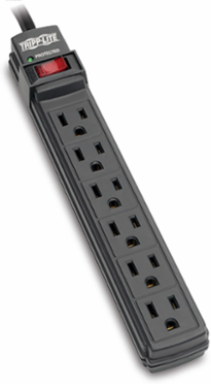

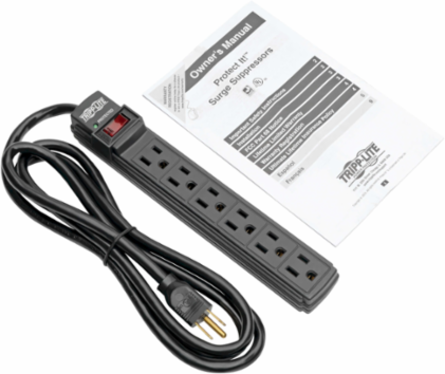

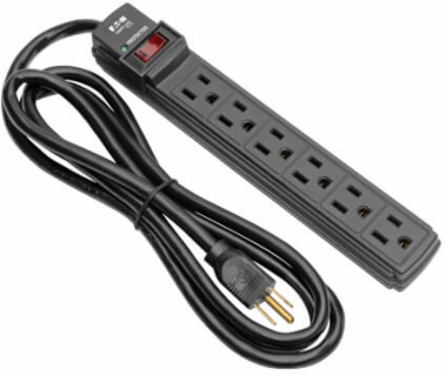

Tripp Lite TLP6B 6-Outlet Surge Protector, 6 ft Cord, 360 Joules, Diagnostic LED, Black Housing
Tripp Lite TLP6B 6-Outlet Surge Protector, 6 ft Cord, 360 Joules, Diagnostic LED, Black Housing
- MPN: TLP6B
- UPC: 037332166784
- PPN: TRP-TLP6B
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.03/ EA
Description
Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise. Recommended for any desktop, network or home application requiring AC line protection.
Features

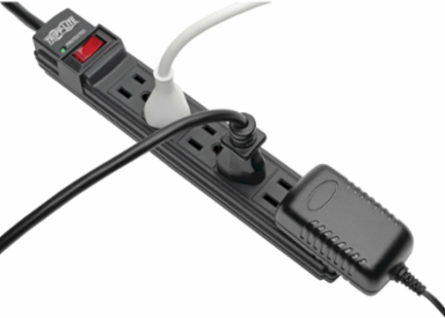

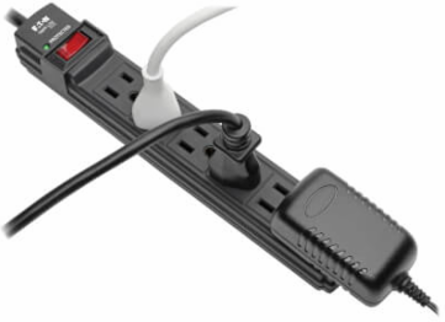

- 6 NEMA 5-15R outlets—one designed for a bulky transformer
- 360-joule surge protection rating
- Filters out threatening EMI/RFI line noise
- 15A resettable circuit breaker prevents dangerous overloads

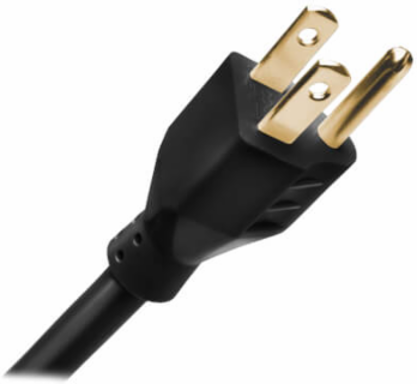

- 6 ft. AC power cord with NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $10,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 360
- Protection Modes
- L-N
- UL1449 Let Through Rating
- 500v
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 20 dB
Certifications
- Additional International Approvals
- RoHS
- UL1363 (Power Tap)
- UL1363
- Approvals
- Exceeds IEEE 587 category A&B specifications
UL1449 3rd Edition (AC Suppression)UL1449 3rd Edition
CanadacUL
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black
- Integrated Keyhole Mounting Slots
- Yes
- Receptacle Color
- Black
- Shipping Weight (lbs.)
- 0.97
- Unit Weight (lbs.)
- .81
ColorBlack
Housing ColorBlack
Material of ConstructionPlastic
Shipping Dimensions (hwd / in.)9.21 x 3.77 x 1.10
Unit Dimensions (hwd / in.)11.25 x 3.77 x 1.10
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details
- Built-in LED confirms suppressor "protection present" (green) status
SwitchesCombination AC circuit breaker and 2 position red illuminated on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 24000
- Input Cord Length (ft.)
- 6
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120

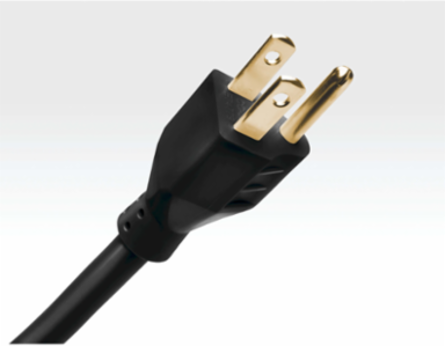

Input Plug TypeNEMA 5-15P
Right-Angle PlugNo
Output
- Frequency Compatibility
- 60 Hz
- Output Receptacles
- (6) 5-15R
- Overload Protection
- 15A resettable illuminated combo switch / circuit breaker
- Outlet Orientation
- Single row of 6 outlets
Output (Watts)1800
Circuit Breaker (amps)15
Transformer Accommodation(2) Yes
Right-Angle OutletsNo
Overview
- UPC Code
- 037332166784
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$10,000 Ultimate Lifetime Insurance
