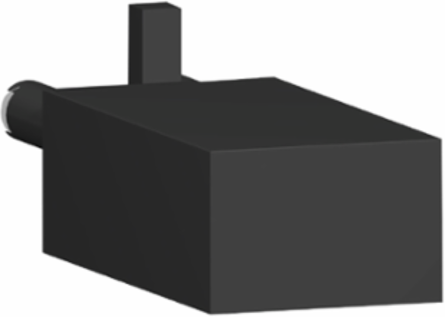

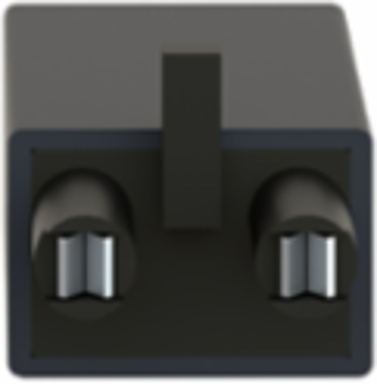

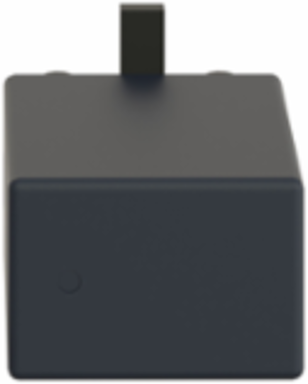

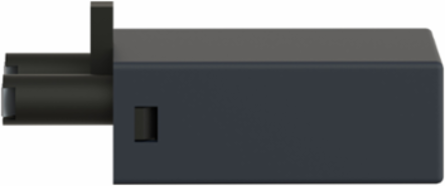

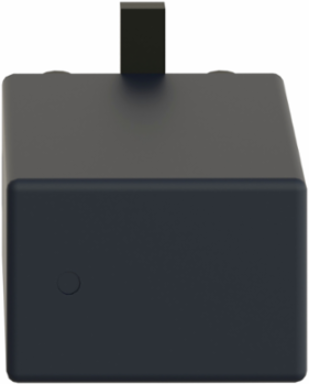

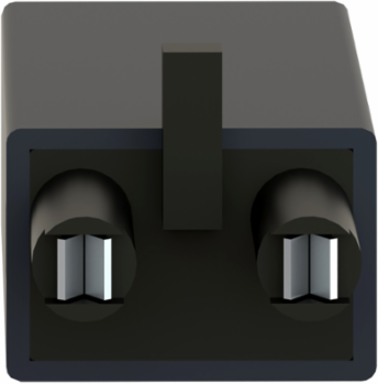

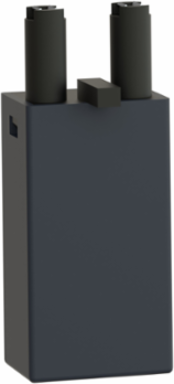

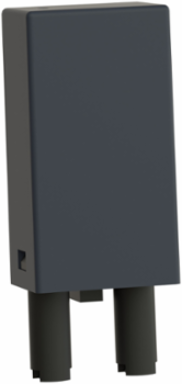

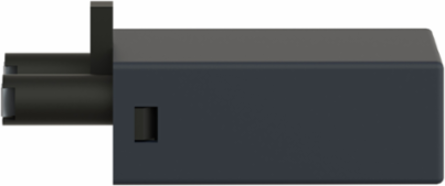

Schneider Electric RXM040W Harmony Electromechanical Relay Protection Module with Diode, 6-250V DC
- MPN: RXM040W
- PPN: SCH-RXM040W
CAD
$4.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RXG diode has a rated voltage of 6V to 250V DC. This protection module enables safety to your relay which helps to protect both people and system from electrical shock. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Features
- This Harmony protection accessory features an integrated flyback diode designed to absorb destructive back-EMF voltage spikes generated when a relay coil is de-energized. By clamping transient voltage instantly at the source, it keeps high-voltage noise from feeding back into control loops, safeguarding sensitive PLC digital outputs and solid-state drivers from electronic degradation or immediate hardware failure.
- Engineered for optimal industrial versatility, the module supports a wide continuous control circuit voltage range from 6V to 250V DC.
- This plug-in accessory features native physical and electrical compatibility with Schneider Electric’s standard Harmony RPZ (1 C/O, 2 C/O) and RXZ (2 C/O, 3 C/O, 4 C/O) relay sockets. It slides directly into the dedicated protection slot on the socket base, creating an instantaneous parallel link across the coil terminals without requiring extra jumper wires or manual splicing.
- This module is engineered to provide precise transient suppression for both Zelio/Harmony RPM and RXM miniature industrial plug-in relays. It ensures that regardless of whether your panel utilizes a high-capacity power relay or a high-density multi-pole signal switcher, the underlying electromagnetic coil is fully stabilized against inductive decay.
Documentation & Downloads
Specifications
Additional
- Voltage
- 6...250 V DC
- Product Or Component Type
- protection module
- Product Destination
- RPM relay, RXM relay
- Warranty
- 18 months
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1705013EN
- Country of Origin
- China
Accessory / Separate Part Designationdiode
Product Compatibilitysocket RPZ 1 C/O, socket RPZ 2 C/O, socket RXZ 2 C/O, socket RXZ 3 C/O, socket RXZ 4 C/O
Net Weight0.003 kg
Reach RegulationFree of Substances of Very High Concern
China Rohs RegulationCompliant
Toxic Heavy Metal FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer StatusGreen Premium product
