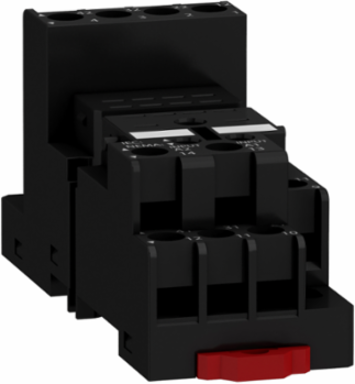

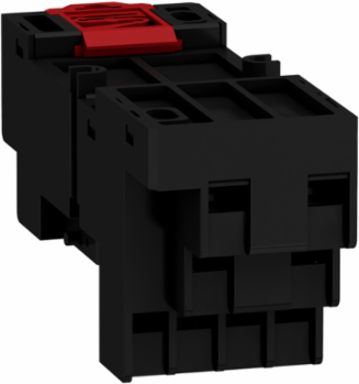

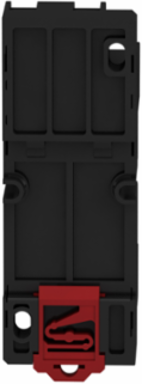

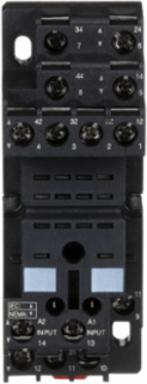

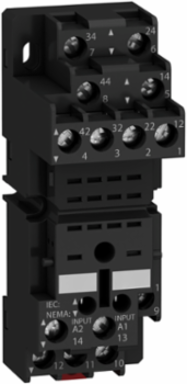

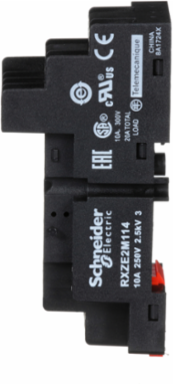

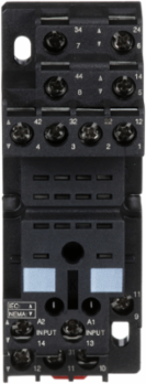

Schneider Electric RXZE2M114 Harmony Relay Socket with 250V Coil Voltage and 10A DPDT Contacts

  • MPN: RXZE2M114
  • PPN: SCH-RXZE2M114
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.03

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

    Features

    • Specifically engineered for the RXM miniature relay range with 4 Changeover (C/O) contacts, this 14-pin logic socket ensures a perfect mechanical and electrical interface. Using a dedicated Schneider Electric base eliminates intermittent signal loss and pin misalignment, providing a stable platform for your automated control systems and industrial PLC interfaces.
    • Featuring a "separate" terminal arrangement that keeps coil and contact connections on opposite sides, this socket significantly reduces the risk of wiring errors and cross-talk during installation. This logical layout allows industrial electricians to dress cables more cleanly, making long-term troubleshooting and circuit tracing faster and more intuitive within high-density control cabinets.
    • Built with high-torque screw clamp connectors, this socket provides a gas-tight, vibration-resistant grip on wires ranging from 20 AWG to 14 AWG. This robust termination method prevents wires from shaking loose in harsh manufacturing environments, ensuring your critical automation sequences remain uninterrupted even when mounted near high-vibration motors or compressors.
    • Designed with a versatile integrated clip, this socket snaps instantly onto a standard 35mm DIN rail or can be surface-mounted directly to a backplate using the screw holes. This flexibility allows for rapid deployment in both new panel builds and field retrofits, helping you optimize space and reduce assembly time in any NEMA or IEC-rated electrical enclosure.
    • Fully compliant with international safety standards including UL 508 and CSA C22.2, this socket is rated for a conventional enclosed thermal current of 10A at up to 250V. These certifications guarantee that your control panels meet global export requirements and local building codes, providing peace of mind through proven thermal stability and dielectric strength.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Mexico, Singapore, United States

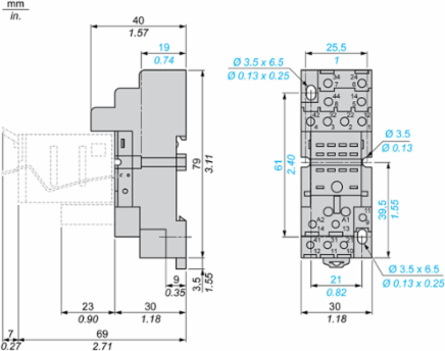

    Physical Attributes

    Wire Stripping Length
    8 mm

    Complementary Attributes

    Line Rated Current
    10 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Range Of Product
    Harmony Electromechanical Relays, Harmony Timer Relays
    Certificate Agency
    UL, CSA, Lloyd's
    Connections - Terminals
    screw clamp terminals, screw clamp terminals, 1 x 0.34...1 x 1 mm² 22 AWG...17 AWG) flexible with cable end, screw clamp terminals, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew clamp terminals, 1 x 0.5...1 x 1.5 mm² 20 AWG...16 AWG) solid without cable end, screw clamp terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.1301173145
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.5 kg CO2 eq., 0.466575265
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RXZ
    Contacts Type And Composition
    4 C/O
    Dielectric Strength
    2500 V
    Group Of Product
    RXM_2-4_C/O_SC_TER_MIX_FLAT
    Overvoltage Category
    III
    Product Or Component Type
    socket
    Sale Per Indivisible Quantity
    10
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.6 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    48
    [Ith] Conventional Free Air Thermal Current
    10 A
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536904000
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Tightening Torque< 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
    [Ue] Rated Operational Voltage< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
    Carbon Footprint Of The Distribution Phase [A4]0.0231349823, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0056911378, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementmixed
    Device Short NameRXZ
    Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
    MarkingCE
    Product AvailabilityStock - Normally stocked in distribution facility
    ReturnabilityYes
    Shape Of Pinflat
    Sustainable PackagingYes
    Pep CodeENVPEP2502014EN
    Pep Verification Date2023-01-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    Width Nominal30 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV
    Package Weight(Lbs)56.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-55 °C, -40-55 °C
    Product Compatibility
    plug-in relay REXL 4 C/Oplug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O, plug-in relay 782H 4 C/O, plug-in relay REXL 2 C/O
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2502014EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-01-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.6255186996
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502014EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Range Of Product
    Harmony Electromechanical Relays, Harmony Timer Relays
    Product Or Component Typesocket

    ETIM

    ETIM 8
    EC001456
    ETIM 9EC001456

    Output Attributes

    Output Type
    relay

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
