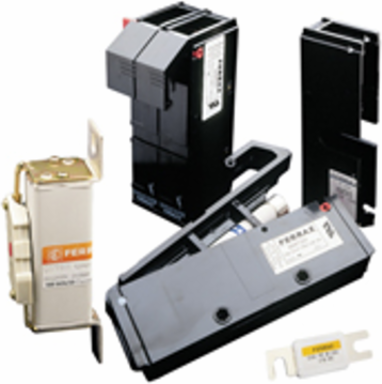

Mersen J097206 PS Modular Fuseholder 1500V 1-4 Pole 0-125 A Tin-plated Copper
- MPN: J097206
- PPN: FER-J097206
CAD
$1072.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen PS modular 1500V fuseholders offer the highest levels of safety and features for 20x127mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required)
Features
- Solid assembly offers good thermal and mechanical withstand rating
- Phenolic resin models for basic applications, fiber-glass polyester for applications in corrosive atmospheres or applications for traction
- Fuse mounting in holders or no-load disconnectors with or without open fuse indicating Microswitches
Specifications
Product Details
| Ampere Range | 0-125 A |
|---|---|
| Lead Free | Consult Technical Services |
| CE conformity | Consult Technical Services |
| Number of Poles | 1-4 |
| UL Certification | E113357 IZLT2.E113357 |
| SCCR | 42kA AC 55kA DC kA |
| Wiring Range | 50mm2 max |
| Materials Contact | Tin-plated Copper |
| Mounting | Screw Mount |
|---|---|
| ROHS Compliant | Consult Technical Services |
| Body Material | Phenolic |
| Connection Terminal Type | Bolt-in |
| DC Voltage Range | 1500 - 2500 VDC |
| Standards | UL Recognized Component to standard 4248-1, File E113357 |
| AC Voltage Range | 1500 - 2500 VAC |
