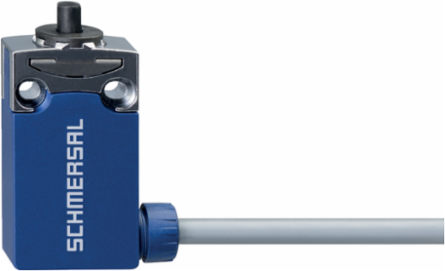

Schmersal 103006583 PS116-T11UE-LR200 Position Switch, IP66/IP67, 2m Cable, 64mm Height
- MPN: 103006583
- PPN: SCM-103006583
CAD
$102.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PS116-T11UE-LR200 Position Switch, IP66/IP67, 2m Cable, 64mm Height
Features
- Pre-wired cable right, 2
- Slow action with overlapping contacts 1 Normally open contact (NO) / 1 Opener (NC)
- Thermoplastic enclosure
- Symmetric enclosure
- Protection class IP66, IP67
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- EN ISO 13849-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 5 A
- Utilisation category AC-15
- 240 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- NO contact, NC contact
- Bounce duration, maximum
- 3 ms
- Switchover time, maximum
- 5.5 ms
Required rated short-circuit current to EN 60947-5-11,000 A
Utilisation category AC-153 A
Utilisation category DC-131.5 A
Switching principleSlow action with overlapping contacts
Switching frequency5,000 /h

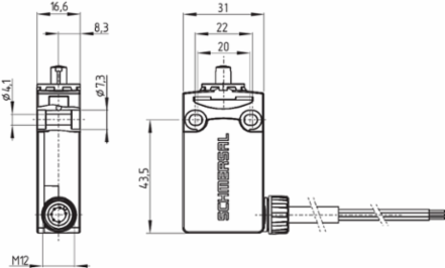

Mechanical data - Dimensions
- Length of sensor
- 16.6 mm
- Height of sensor
- 64 mm
Width of sensor31 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 300 V
Rated impulse withstand voltage U4 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Safety functions
- Yes
- Number of safety contacts
- 1
Number of auxiliary contacts1
General data
- Standards
- IEC 60947-5-1
- Housing construction form
- Norm construction design
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Terminal (mechanical)right
Actuator type to DIN EN 50047B
Material of the contacts, electricalSilver
Ambient conditions
- Degree of protection
- IP66 | IP67
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Cable, 4-pole
- Wire cross-section
- 0.5 mm
Length of cable2 m
Cable typeLiYY
Mechanical data
- Actuating element
- plunger S200
- Actuating force, minimum
- 10 N
- Actuating speed, minimum
- 60 mm/min
Mechanical life, minimum10,000,000 Operations
Positive break force, minimum40 N
Actuating speed, maximum0.5 m/s
Approval - Standards
- Certificates
- cULus | CCC | EAC
