Schmersal 103006599 PS116 Position Switch with Roller Plunger R200, IP66/IP67, 10N Actuating Force, 16.6mm Length
- MPN: 103006599
- PPN: SCM-103006599
CAD
$123.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

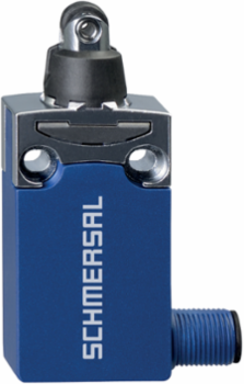

PS116 Position Switch with Roller Plunger R200, IP66/IP67, 10N Actuating Force, 16.6mm Length
Features
- connector plug M12, right
- Snap action 1 Normally open contact (NO) / 1 Opener (NC)
- Thermoplastic enclosure
- Symmetric enclosure
- Protection class IP66, IP67
- plastic roller Ø 9,5 mm
Documentation & Downloads
Specifications
Electrical data
- Required rated short-circuit current
- 400 A
- Utilisation category DC-13
- 24 VDC

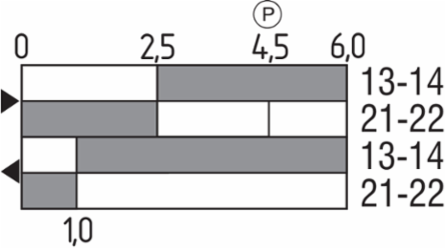

- Switching element
- 1 NO contact, 1 NC contacts
- Bounce duration, maximum
- 3 ms
- Switchover time, maximum
- 5.5 ms
Utilisation category AC-15240 VAC
Utilisation category DC-131.5 A
Switching principleSnap action
Switching frequency5,000 /h
Material of the contacts, electricalSilver

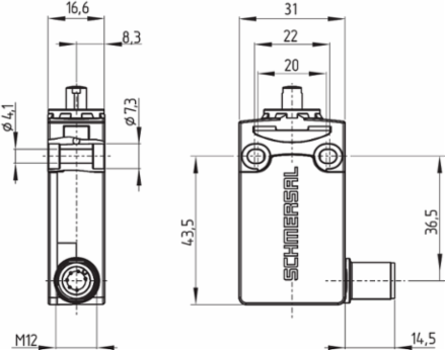

Mechanical data - Dimensions
- Length of sensor
- 16.6 mm
- Height of sensor
- 74.1 mm
Width of sensor31 mm

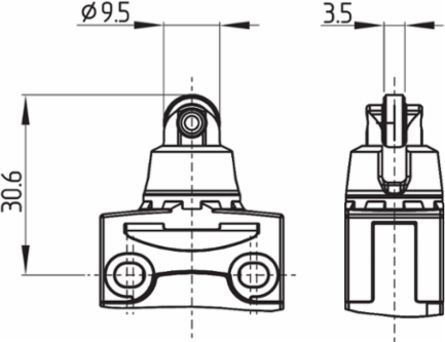

Diameter of Castor9.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 300 V
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
- Note (B
- at 10% I | and ohmic load
B1,000,000 Operations
General data - Features
- Safety functions
- Yes
- Number of safety contacts
- 1
Number of auxiliary contacts1
General data
- Standards
- EN IEC 60947-5-1
- Housing construction form
- Norm construction design
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Gross weight
- 60 g
Terminal (mechanical)right
Actuator type to EN 50047c
Active areaMetal film
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Connector M12, 4-pole
- Wire cross-section
- 0.5 mm
Connector positionRight
Mechanical data
- Actuating element
- Roller plunger R200
- Actuating force, minimum
- 10 N
- Actuating speed, minimum
- 10 mm/min
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Positive break torque
- 0.6 Nm
Mechanical life, minimum10,000,000 Operations
Positive break force, minimum40 N
Actuating speed, maximum1 m/s
Actuating torque, minimum0.2 Nm
Approvals - Standards
- Certificates
- cURus | CCC
