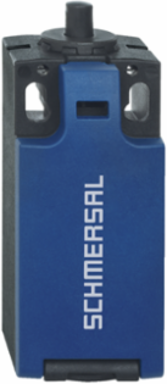

Schmersal 103013713 PS216 Plunger Switch S200, 32.5mm Length, IP67, Snap Action, 10A

MPN: 103013713
PPN: SCM-103013713

$58.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PS216 Plunger Switch S200, 32.5mm Length, IP67, Snap Action, 10A

Features

thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50047
LED version available

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Utilisation category AC-15	240 VAC
Utilisation category DC-13	24 VDC

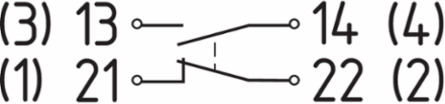

Switching element	1 NO contact, 1 NC contacts
Switching frequency	5,000 /h

Required rated short-circuit current	400 A
Utilisation category AC-15	3 A
Utilisation category DC-13	3 A
Switching principle	Snap action
Material of the contacts, electrical	Silver

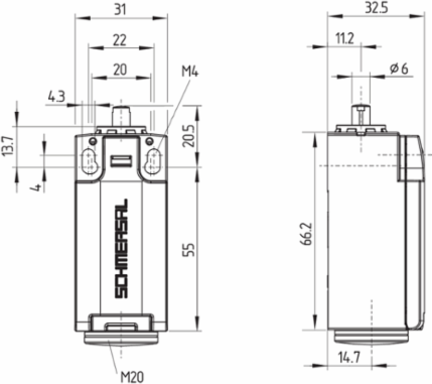

Mechanical data - Dimensions

Length of sensor	32.5 mm
Height of sensor	75.5 mm

Width of sensor	31 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Degree of pollution	3

Rated impulse withstand voltage U	4 kV

Safety classification - Safety outputs

B	20,000,000 Operations

General data - Features

Safety functions	Yes
Number of safety contacts	1

Number of auxiliary contacts	1

General data

Standards	EN IEC 60947-5-1
Actuator type to EN 50047	B
Gross weight	68 g

Housing construction form	Norm construction design
Enclosure material	Plastic, glass-fibre-reinforced

Safety classification

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Protection class	II

Ambient temperature	-30 ... +80 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5
Cable section, maximum	1.5 mm²
Tightening torque of electrical connection, maximum	0.8 Nm

Cable section, minimum	0.34 mm²
Tightening torque of electrical connection, minimum	0.6 Nm

Mechanical data

Actuating element	plunger S200
Mechanical life, minimum	10,000,000 Operations
Actuating speed, minimum	10 mm/min
Tightening torque of the fixing screws	1.2 Nm
