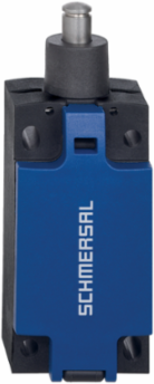

Schmersal 103015148 PS316 Plunger S300 Position Switch, IP67, Actuating Speed 0.5 m/s, Weight 115 g
- MPN: 103015148
- PPN: SCM-103015148
CAD
$81.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PS316 Plunger S300 Position Switch, IP67, Actuating Speed 0.5 m/s, Weight 115 g
Features
- thermoplastic enclosure with foldable latching cover
- Quick connection technology as connection terminals rotated by 45°
- Simple and quick to adjust the control elements by 45°.
- cable entry 1 x M20 x 1,5
- Design to EN 50041
- LED version available
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 5 A |
|---|---|
| Utilisation category AC-15 | 240 VAC |
| Utilisation category DC-13 | 24 VDC |

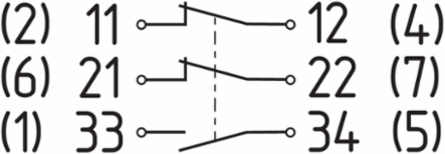

| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency | 5,000 /h |
| Required rated short-circuit current | 400 A |
|---|---|
| Utilisation category AC-15 | 3 A |
| Utilisation category DC-13 | 3 A |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |

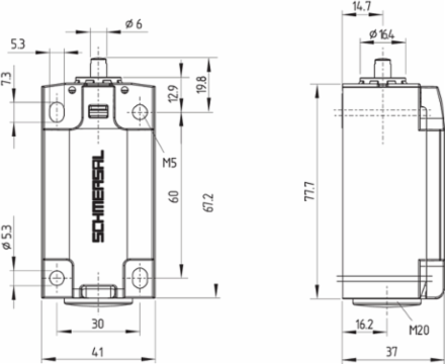

Mechanical data - Dimensions
| Length of sensor | 37 mm |
|---|---|
| Height of sensor | 104 mm |
| Width of sensor | 41 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 300 V |
|---|---|
| Degree of pollution | 3 |
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|
General data - Features
| Safety functions | Yes |
|---|---|
| Number of safety contacts | 2 |
| Number of auxiliary contacts | 1 |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Actuator type to EN 50041 | B |
| Gross weight | 115 g |
| Housing construction form | Norm construction design |
|---|---|
| Enclosure material | Plastic, glass-fibre-reinforced |
Safety classification
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 | IP66 |
|---|---|
| Protection class | II |
| Ambient temperature | -30 ... +80 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 1.5 mm² |
| Tightening torque of electrical connection, maximum | 0.8 Nm |
| Cable section, minimum | 0.34 mm² |
|---|---|
| Tightening torque of electrical connection, minimum | 0.6 Nm |
Mechanical data

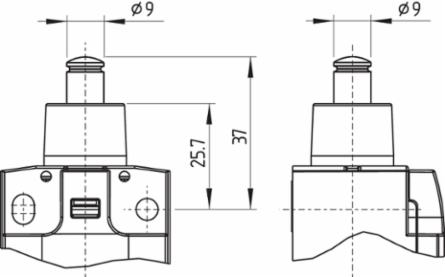

| Actuating element | Plunger S300 |
|---|---|
| Positive break force, minimum | 50 N |
| Actuating speed, maximum | 0.5 m/s |
| Mechanical life, minimum | 10,000,000 Operations |
|---|---|
| Actuating speed, minimum | 60 mm/min |
| Tightening torque of the fixing screws | 1.2 Nm |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
