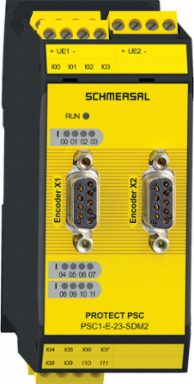

Schmersal 103008462 Safety Controller PSC1-E-23-SDM2, 115 mm Depth, 100 mm Height, IP20, 370 g

MPN: 103008462
PPN: SCM-103008462

$1759.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety Controller PSC1-E-23-SDM2, 115 mm Depth, 100 mm Height, IP20, 370 g

Documentation & Downloads

Specifications

Key Specifications

Width	45 mm
Depth	115 mm

Height	100 mm

Electrical data

Operating voltage	24 VDC -15 % / +20 %

Rated operating voltage	24 VDC

Mechanical data - Dimensions

Width	45 mm
Depth	115 mm

Height	100 mm

Ambient conditions - Insulation values

Overvoltage category	III

Degree of pollution	2

Scope of delivery

Scope of delivery	Backplane bus connector \| Connector terminals

Electrical data - Spindle monitoring

Number of axis monitoring, max.	2

Drive monitoring, encoder typ	SSI \| TTL \| SINCOS \| Proximity switch

General data - Features

Number of digital fail-safe inputs	12

General data

Terminal (mechanical)	Removable screw terminals

Gross weight	370 g

Safety classification

Performance Level, up to	e
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP20
Storage and transport temperature, minimum	-25 °C
Relative humidity, minimum	5 %
Note (Relative humidity)	non-condensing

Ambient temperature	+0 ... +50 °C
Storage and transport temperature, maximum	+70 °C
Relative humidity, maximum	85 %
Permissible installation altitude above sea level, maximum	2,000 m
