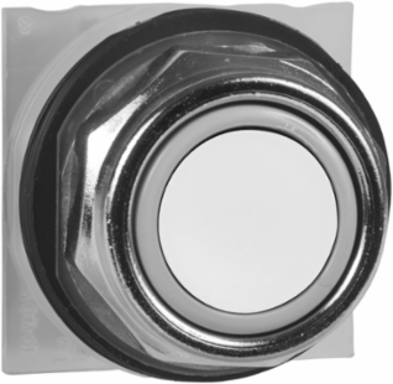

Schneider Electric 9001KR1WH5Y238 Push Button 600VAC 10A 30mm, IP66, 5 Million Mechanical Durability
- MPN: 9001KR1WH5Y238
- UPC: 785901736547
- PPN: SCH-9001KR1WH5Y238
CAD
$91.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for high performance in demanding environments, this push button from Schneider Electric is designed to handle up to 600VAC and 10A, ensuring reliable operation in various automation and control applications. The 30mm size is not only compact but also intuitive, making it easy to implement in any panel or machinery setup. With a robust IP66 rating, it offers superior protection against dust and water, contributing to its impressive mechanical durability of 5 million cycles, which signifies minimal maintenance needs and prolonged service life. This push button stands out as a dependable choice for professionals looking to enhance control systems while maintaining safety and efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 1, no |
| Local Publishable Date | 2026-03-11 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | chromium plated metal |
| Contact Operation | standard |
| Device Short Name | 9001K |
| Mechanical Durability | 5000000 cycles |
| Operating Position | any position |
| Operator Profile | flush |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Shape Of Signaling Unit Head | octagonal |
| Sustainable Packaging | No |
| Type Of Operator | spring return |
| Pep Code | ENVPEP2503027EN |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Short-circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Package Weight(Lbs) | 122.47 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | 9001K |
| Contacts Material | silver alloy contacts |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Mounting Diameter | 30 mm |
| Operator Additional Information | full guard in plastic |
| Positive Opening | without |
| Product Or Component Type | push-button |
| Range Of Product | Harmony 9001K |
| Shape Of Screw Head | cross slotted |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP65/IP66 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2503027EN |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | Harmony 9001K |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
