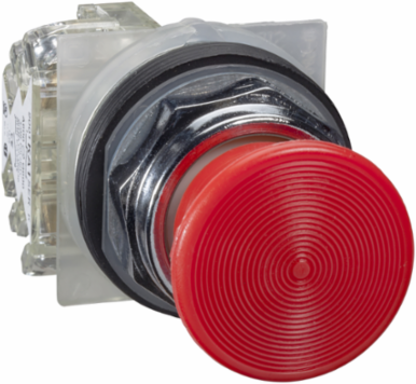

Schneider Electric 9001KR24RH13 Harmony 35mm Red Mushroom Push Button, Spring Return, IP66
- MPN: 9001KR24RH13
- UPC: 785901033509
- PPN: SCH-9001KR24RH13
CAD
$159.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Cad Overall Depth
- 70 mm
- Cad Overall Width
- 46 mm
Cad Overall Height45 mm
Size30 mm
Complementary Attributes
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- mushroom Ø 35 mm, red mushroom Ø 35 mm, unmarked
- [Icm] Rated Short-circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
- Terminals Description Iso N°1
- (13-14-11-12)OF, (13-14-11-12)OF
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.3383209739596245
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.8404320063693494
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- 9001K
- Contacts Type And Composition
- 1 C/O
- Head Material
- plastic
- Mounting Diameter
- 30 mm
- Operator Additional Information
- screw-on plastic with set screw
- Positive Opening
- without
- Product Or Component Type
- push-button
- Range Of Product
- Harmony 9001K
- Shape Of Screw Head
- cross slotted
- Shock Resistance
- 50 gn IEC 60068-2-27
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ith] Conventional Free Air Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyNEMA, UL 508
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Carbon Footprint Of The Distribution Phase [A4]0.08330406062834424, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0011365046356325667, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialmetal
Contacts Materialsilver alloy contacts
Device Short Name9001K
Mechanical Durability5000000 cycles
Operating Positionany position
Overvoltage Categoryclass II conforming to IEC 61140
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv6.2.4
Tightening Torque0.8-0.8 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %49
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)154.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1.2631935455929508
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
