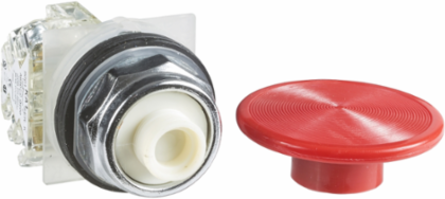

Schneider Electric 9001KR25RH13 Harmony 9001K 57mm Red Mushroom Push-Button, IP66, 30mm
Schneider Electric 9001KR25RH13 Harmony 9001K 57mm Red Mushroom Push-Button, IP66, 30mm
- MPN: 9001KR25RH13
- UPC: 785901033578
- PPN: SCH-9001KR25RH13
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$159.94/ EA
Description
This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NO + 1 x NC contacts. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Environment
- Product Certifications
- NEMA || UL 508
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsEN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Terminals Description Iso N°1
- (13-14-11-12)OF
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Positive Opening
- without
- Operator Profile
- mushroom Ø 57 mm
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- red
- Net Weight
- 0.132 kg
- Size
- 30 mm
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Type Of Operator
- spring return
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- Cad Overall Depth
- 70 mm
Operator Additional Informationscrew-on plastic with set screw
Contacts Materialsilver alloy contacts
Mounting Diameter30 mm
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headround
Head Materialplastic
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Cad Overall Height57 mm
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Contacts Type And Composition1 C/O
Bezel Materialmetal
Mechanical Durability5000000 cycles
Operating Positionany position
Cad Overall Width57 mm
Shape Of Screw Headcross slotted
Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- push-button
- Device Short Name
- 9001K
Type Of Operatorspring return
Operator Profilered mushroom Ø 57 mm, unmarked
