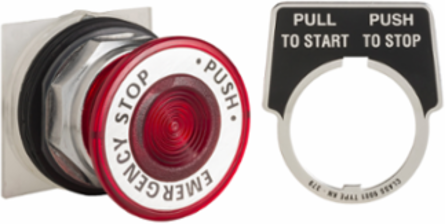

Square D 9001KR9RH27 Push-Button, Mushroom 41mm, Metal, Red, 30mm, 3 NC, Push-Pull
- MPN: 9001KR9RH27
- UPC: 785901636519
- PPN: SCH-9001KR9RH27
CAD
$293.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Crafted for functionality within automation and control systems, this push-button from Schneider Electric features a robust metal construction and a striking red mushroom head. With a diameter of 41mm and a push-pull operation, it ensures reliable performance under various conditions, while the three normally closed (NC) contacts provide versatility in applications. This device is designed to enhance safety and efficiency in industrial environments, making it an essential component for control panels and machinery.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 10 A, AC-15 || 10 A, DC-13
- Contacts Type and Composition
- 3 NC
- Size
- 30 mm
- Operator Profile
- mushroom 8 41 mm
- Cap Color
- red
- Product Certifications
- CE, UL Listed, NEMA, CSA
- Environmental Disclosure
- ENVPEP121006EN
- RoHS Compliance
- Pro-active compliance, out of EU RoHS scope
- Device Short Name
- K
- Light Source
- without
- Product Range
- Harmony 9001K
- Sustainable Offer Status
- Green Premium product
- Country of Origin
- Mexico
Operator Typepush-pull
Operator Positions2 positions
Mounting Diameter30 mm
Materialmetal
NEMA Degree of ProtectionNEMA 1/2/3/3R/4/6/12/13
Mercury FreeYes
Reach RegulationContains SVHC above threshold
China RoHS RegulationX
Device Presentationcomplete product
Operator Additional Informationscrew-on plastic
WEEE ComplianceEU market disposal required
Rohs Exemption InformationYes
