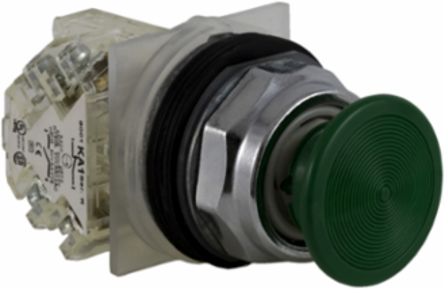

Schneider Electric 9001KR4GH13 Harmony 9001K Mushroom Push Button, 30 mm, Spring Return, Green
- MPN: 9001KR4GH13
- UPC: 785901033813
- PPN: SCH-9001KR4GH13
CAD
$159.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, it has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This 35mm mushroom shaped push button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- mushroom Ø 35 mm, green mushroom Ø 35 mm
- [Ie] Rated Operational Current
- 10 A, AC-15, 10 A, DC-13
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- 1 C/O
- Light Block Supply
- without supply
- Mounting Diameter
- 30 mm
- Operator Additional Information
- snap-in plastic
- Product Or Component Type
- push-button
- Returnability
- No
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2503027EN
- Connections - Terminals
- screw clamp terminals
- Package Weight(Lbs)
- 136.078 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA LR 25490 class 3211 03, CE, UL listed file E42259 CCN NKCR, NEMA
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationstandard
Device Short NameK
Light Sourcewithout
Operating Positionany position
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colourgreen
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
