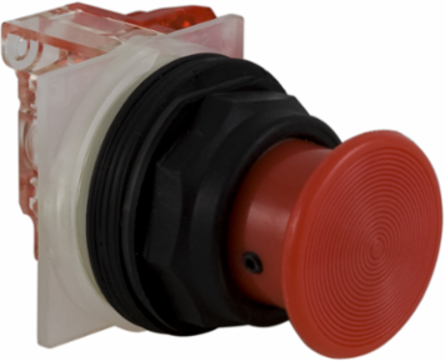

Square D 9001SKR24RH6 Push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, spring return, 1 NC
Square D 9001SKR24RH6 Push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, spring return, 1 NC
- MPN: 9001SKR24RH6
- UPC: 785901039723
- PPN: SCH-9001SKR24RH6
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.68/ EA
Description
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 35mm mushroom head and 1 x NC contact. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Specifications
- Operator Additional Information
- screw-on plastic with set screw
- Operator Profile
- red mushroom Ø 35 mm
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001SK
Type Of Operatorspring return
Device Short Name9001SK
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Standards
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || JIS C 4520 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1
- Ip Degree Of Protection
- IP66
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Complementary
- Contacts Type And Composition
- 1 NC
- Contact Operation
- standard
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Size
- 30 mm
Bezel Materialplastic
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 35 mm
Cap/Operator Or Lens Colourred
Device Presentationcomplete product
