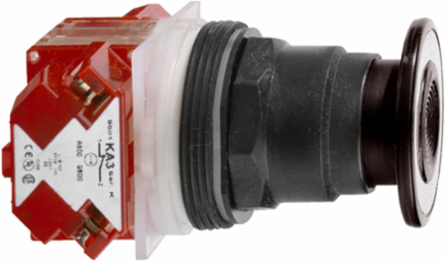

Schneider Electric 9001SKR9BH13 Harmony Mushroom Push-Button, 30 mm, 2 Positions, IP66
- MPN: 9001SKR9BH13
- UPC: 785901287513
- PPN: SCH-9001SKR9BH13
CAD
$219.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, modular black push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- screw-on plastic
- Type Of Operator
- push-pull
- Operator Profile
- black mushroom Ø 41 mm, unmarked
Range Of ProductHarmony 9001SK
Product Or Component Typepush-button
Device Short Name9001SK
Complementary
- Contacts Type And Composition
- 1 C/O
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.159 kg
- Size
- 30 mm
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Bezel Material
- plastic
- Operator Position Information
- 2 positions
- Compatibility Code
- 9001SK
- Operating Position
- any position
- Cad Overall Width
- 46 mm
- Shape Of Screw Head
- cross slotted
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
Positive Openingwithout
Operator Profilemushroom Ø 41 mm
Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colourblack
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Cad Overall Height45 mm
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Mechanical Durability5000000 cycles
Type Of Operatorpush-pull
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Cad Overall Depth69 mm
Environment
- Product Certifications
- UL 508 || NEMA
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsEN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120816EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
