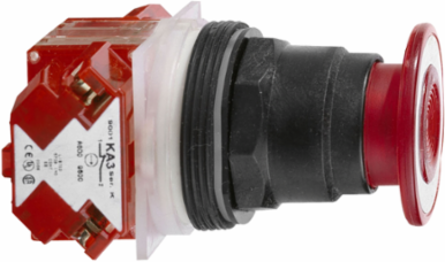

Schneider Electric 9001SKR9RH6 Push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 1NC
Schneider Electric 9001SKR9RH6 Push button, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 1NC
- MPN: 9001SKR9RH6
- UPC: 785901319047
- PPN: SCH-9001SKR9RH6
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$191.75/ EA
Description
This red push button is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a red mushroom diameter 41mm, unmarked Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 2 maintained positions push pull operator and it is supplied with 1 x NC contact and screw clamp terminals. It weighs 159g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsEN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120816EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Contacts Type And Composition
- 1 NC
- Contacts Material
- silver alloy contacts
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.159 kg
- Size
- 30 mm
- Device Presentation
- complete product
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Bezel Material
- plastic
- Operator Position Information
- 2 positions
- Compatibility Code
- 9001SK
- Operating Position
- any position
- Cad Overall Width
- 46 mm
- Shape Of Screw Head
- cross slotted
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
Positive Openingwith IEC 60947-5-2
Operator Profilemushroom Ø 41 mm
Rated Breaking Capacity3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 0.1 kA 125 V DC-13 || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13
Cap/Operator Or Lens Colourred
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Cad Overall Height45 mm
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Mechanical Durability5000000 cycles
Type Of Operatorpush-pull
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Cad Overall Depth69 mm
Specifications
- Operator Additional Information
- screw-on plastic
- Type Of Operator
- push-pull
- Operator Profile
- red mushroom Ø 41 mm, unmarked
Range Of ProductHarmony 9001SK
Product Or Component Typepush-button
Device Short Name9001SK
