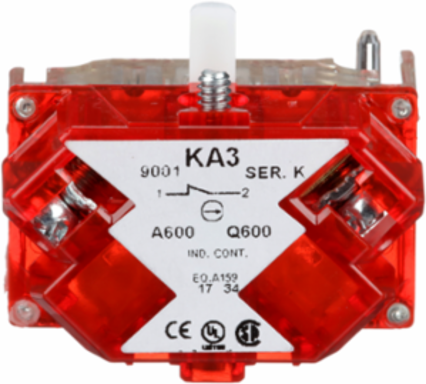

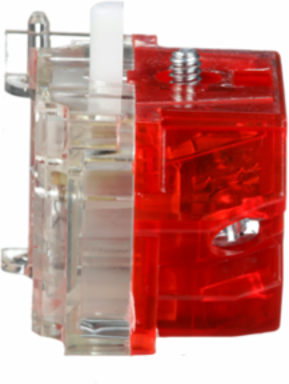

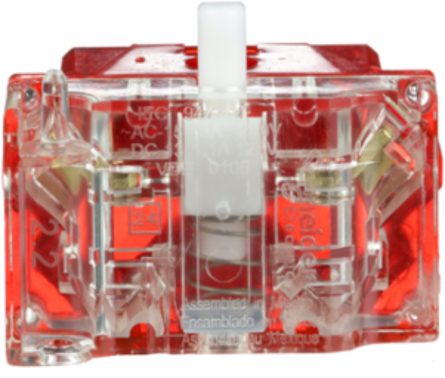

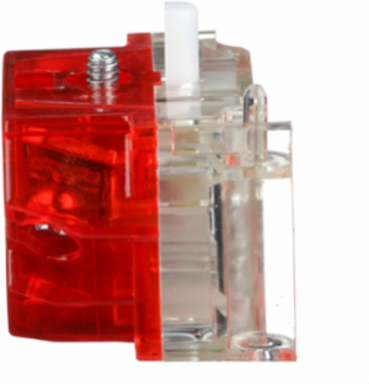

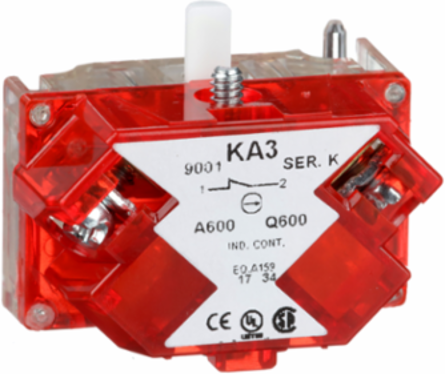

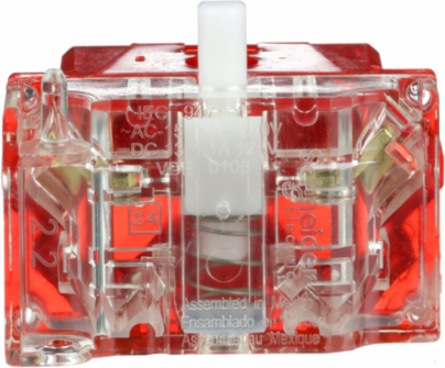

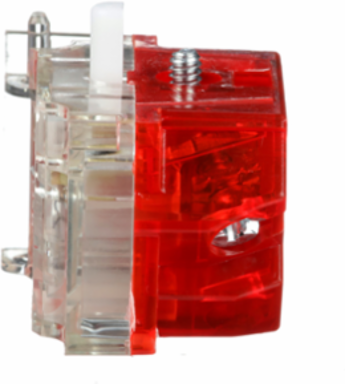

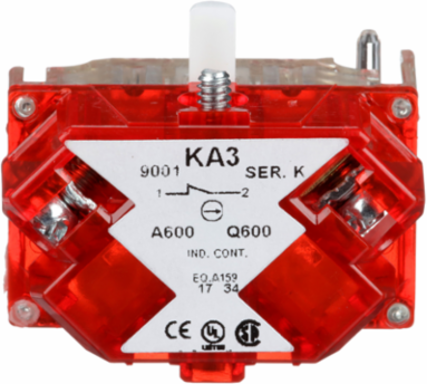

Square D 9001KA3 Contact Block, 1NC, 0...600V, Screw Clamp Terminal, Silver Alloy Contacts
- MPN: 9001KA3
- UPC: 785901880028
- PPN: SCH-9001KA3
CAD
$27.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- The 9001KA3 is a heavy-duty contact block designed for the Schneider Electric (Square D) 9001K 30mm push button and selector switch range. It is the internal "switch" that actually makes or breaks the electrical connection when you press a button or turn a knob on a control panel.
- his block features two separate circuits: 1 NO (Normally Open): The circuit is open until the operator is pressed. 1 NC (Normally Closed): The circuit is closed until the operator is pressed. This "1 NO + 1 NC" setup is the industry standard for motor control, where the NO contact is used for a "Start" function and the NC contact for a "Stop" or "Interlock" function.
- The 9001K series is a "Type K" heavy-duty, oil-tight, and dust-tight system. The 9001KA3 is built with a high-impact plastic housing and silver alloy contacts to withstand the harsh vibrations and chemical exposure often found in Canadian mining, oil and gas, and manufacturing facilities.
- One of the best features of the 9001K system is that these blocks are stackable. You can mount several 9001KA3 blocks behind a single push button to control multiple independent circuits simultaneously. They are held together by two captive mounting screws, making it easy to expand your control logic without replacing the entire operator.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 240 V, AC-15, A600-Q600 NEMA 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA; 6 kA 120 V AC-15, 720 VA; 1.2 kA 600 V AC-15, 720 VA; 1.5 kA 480 V AC-15, 720 VA; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13; 0.55 kA 125 V DC-13
- Conventional Thermal Current (Ith)
- 10 A
- Contact Type
- 1 NC
- Electrical Shock Protection Class
- Class II IEC 61140
- Weight
- 23 g (0.023 kg)
- Shape of Screw Head
- Cross slotted
- Ambient Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Vibration Resistance
- 7 gn (2 to 500 Hz) IEC 60068-2-6
- Short-circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Country of Origin
- Mexico
Voltage Range0...600 V
Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13
Tightening Torque0.8 N.m (7.08 lbf.in) IEC 60947-1
Contact MaterialSilver alloy contacts
Device Diameter30 mm
Terminal TypeScrew clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Protection RatingIP20 IEC 60529
Ambient Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Shock Resistance50 gn IEC 60068-2-27
ComplianceUL Listed, CSA Certified, CE Declaration, RoHS Compliant, NEMA, UL 508
