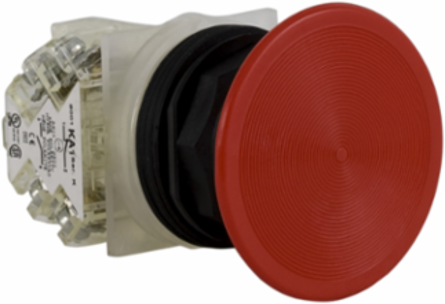

Square D 9001SKR4RH5 Harmony Push-Button Red Mushroom 35mm, 30mm Diameter, IP66, 1 NO
Square D 9001SKR4RH5 Harmony Push-Button Red Mushroom 35mm, 30mm Diameter, IP66, 1 NO
- MPN: 9001SKR4RH5
- UPC: 785901183365
- PPN: SCH-9001SKR4RH5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.68/ EA
Description
This Harmony 9001SK, modular flush red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has 1 x NO contact and uses screw-clamp terminals. This flush push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Contacts Type And Composition
- 1 NO
- Contact Operation
- standard
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Size
- 30 mm
Bezel Materialplastic
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 35 mm
Cap/Operator Or Lens Colourred
Device Presentationcomplete product
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Operator Additional Information
- snap-in plastic
- Operator Profile
- red mushroom Ø 35 mm
- Device Short Name
- 9001SK
Range Of ProductHarmony 9001SK
Product Or Component Typepush-button
Environment
- Standards
- UL 508 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 852
- Ip Degree Of Protection
- IP66
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
