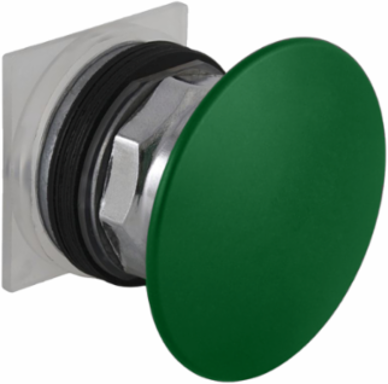

Square D 9001KR25GM Harmony 9001K Metal Mushroom Push Button Head 60mm Green, Spring Return
- MPN: 9001KR25GM
- UPC: 785901483342
- PPN: SCH-9001KR25GM
CAD
$131.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 60mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- spring return
- Product Compatibility
- contact block 9001KA..
Operator Profilegreen mushroom Ø 60 mm, unmarked
Product Or Component Typehead for push-button
Device Short Name9001K
Complementary
- Contacts Type And Composition
- without contact block
- Bezel Material
- metal
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Head Material
- metal
- Cad Overall Depth
- 70 mm
- Size
- 30 mm
- Device Presentation
- basic element
Operator Additional Informationscrew-on metal with set screw
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 60 mm
Operating Positionany position
Cap/Operator Or Lens Colourgreen
Cad Overall Width60 mm
Net Weight0.15 kg
Cad Overall Height60 mm
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
StandardsIEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
