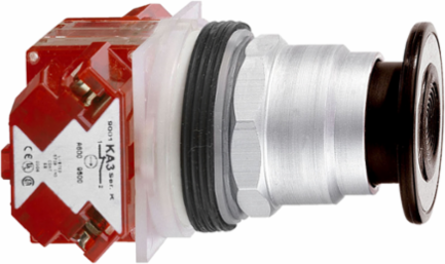

Push-Button Head, Harmony 9001K, 41mm Mushroom, Metal, 2-Position, IP66
Square D

Square D 9001KR9B Push-Button Head, Harmony 9001K, 41mm Mushroom, Metal, 2-Position, IP66

  • MPN: 9001KR9B
  • UPC: 785901034100
  • PPN: SCH-9001KR9B

CAD

$166.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony 9001K, modular black push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape with 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Operator Additional Information
screw-on plastic
Operator Profile
black flush
Device Short Name
9001K
Range Of ProductHarmony 9001K
Product Or Component Typehead for push-button

Complementary

Contacts Type And Composition
without contact block
Operator Position Information
2 positions
Type Of Operator
spring return
Type Of Operator
push-pull
Cap/Operator Or Lens Colour
black
Bezel Materialmetal
Mounting Diameter30 mm
Operator Profilemushroom Ø 41 mm
Shape Of Signaling Unit Headround

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
