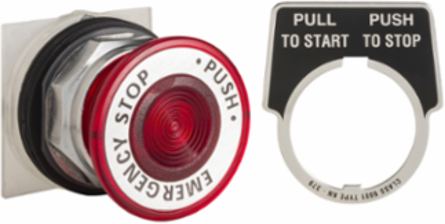

Square D 9001KR9R94 Harmony 9001K Push-Button Head, 30 mm, Metal, Red, Mushroom Ø 41 mm, 2 Positions
- MPN: 9001KR9R94
- UPC: 785901930723
- PPN: SCH-9001KR9R94
CAD
$173.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This push-button head from Schneider Electric is designed for use in automation and control applications, featuring a robust metal construction paired with a striking red mushroom shape. With a generous diameter of 41 mm, it is easy to identify and operate, making it suitable for various industrial environments. The two-position functionality allows for versatile control, ensuring reliable performance in critical operations. Whether you're incorporating this push-button into a new setup or upgrading an existing system, its durable design and ergonomic shape enhance both safety and efficiency on the job.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 5,000,000 cycles
- Shock Resistance
- 50 gn IEC 60068-2-27
- Overvoltage Category
- Class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Mounting Diameter
- 30 mm
- Type of Operator
- push-pull
- Head Material
- plastic
- Operator Position Information
- 2 positions
- Net Weight
- 0.195 kg
- Country of Origin
- Mexico
- RoHS Exemption Information
- Yes
- Mercury Free
- Yes
- China RoHS Regulation
- X
- WEEE
- Must be disposed per EU regulations
- Device Presentation
- basic element
- Product or Component Type
- head for push-button
Operating PositionAny position
Vibration Resistance7 gn (2 to 500 Hz) IEC 60068-2-6
IP Degree of ProtectionIP66 IEC 60529
Size30 mm
Operator Profilered mushroom 1 mm, unmarked
Bezel Materialmetal
Cap/Operator Colourred
Protective TreatmentTC
StandardsEN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508, CSA C22.2 No 14
Contacts Type and Compositionwithout contact block
Reach RegulationContains SVHC above threshold
EU RoHS DirectivePro-active compliance (out of EU RoHS scope)
Sustainable Offer StatusGreen Premium product
Environmental DisclosureENVPEP121006EN
Range of ProductHarmony 9001K
Device Short Name9001K
