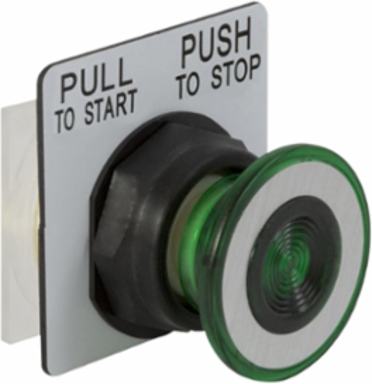

Harmony Push-Button Head, Mushroom Ø 41mm, Green, 30mm, 2 Positions
Square D

Square D 9001SKR9G Harmony Push-Button Head, Mushroom Ø 41mm, Green, 30mm, 2 Positions

  • MPN: 9001SKR9G
  • UPC: 785901043010
  • PPN: SCH-9001SKR9G

CAD

$166.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony 9001SK, modular green push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape with 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001SK
Device Short Name
9001SK
Product Or Component Typehead for push-button

Complementary

Product Certifications
CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Light Source
without
Bezel Material
plastic
Operator Position Information
2 positions
Mounting Diameter
30 mm
Operator Profile
mushroom Ø 41 mm
Shape Of Signaling Unit Head
octagonal
Size
30 mm
Contacts Type And Compositionwithout contact block
Operator Additional Informationscrew-on plastic
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Light Block Supplywithout supply
Type Of Operatormaintained
Type Of Operatorpush-pull
Cap/Operator Or Lens Colourgreen
Ip Degree Of ProtectionIP64

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP120816EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
