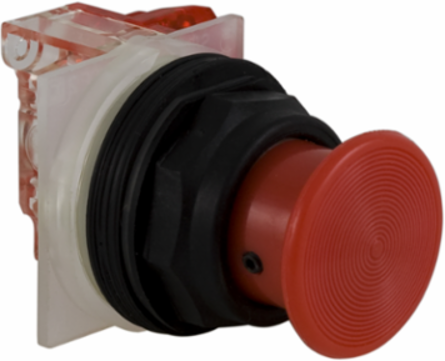

Schneider Electric 9001SKR4R Harmony 9001SK Red Mushroom Push-Button Head, 30 mm, Spring Return
- MPN: 9001SKR4R
- UPC: 785901820895
- PPN: SCH-9001SKR4R
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001SK, modular flush red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. This flush push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- Featuring a high-visibility, 30mm vibrant red mushroom button, this operator provides a large, unmistakable target for operators needing to execute an instant emergency stop. The oversized ergonomic shape ensures that personnel can easily strike or palm the button from multiple angles or while wearing heavy industrial gloves, preventing costly delays during critical machine failures.
- Constructed from premium, heavy-duty plastic materials, the 9001SK series is completely immune to the pitting, rust, and corrosion that plagues standard metal buttons in wet environments. It carries robust NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 ratings, making it the ideal choice for food processing facilities, wastewater treatment plants, and marine environments subjected to high-pressure washdowns.
- Utilizing a precision-engineered spring-return mechanism, this operator instantly springs back to its resting position as soon as pressure is released. This momentary action makes it perfect for standard signaling, logic-tripping, or manual indexing functions where a maintained electrical lock is not required, allowing industrial automation systems to cycle safely through standard PLC logic sequences.
- This 30mm push button is designed to seamlessly accept Schneider's full line of 9001KA snap-on contact blocks, allowing control panel builders to stack multiple Normally Open (NO) or Normally Closed (NC) circuits. This modular adaptability ensures compatibility with complex multi-wire safety circuits, remote status pilot lights, and PLC inputs without requiring separate, bulky command devices.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for push-button
Complementary
- Product Certifications
- CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
- Light Source
- without
- Bezel Material
- plastic
- Light Block Supply
- without supply
- Operator Profile
- mushroom Ø 35 mm
- Shape Of Signaling Unit Head
- octagonal
- Size
- 30 mm
Contacts Type And Compositionwithout contact block
Operator Additional Informationsnap-in plastic
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourred
Ip Degree Of ProtectionIP64
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
