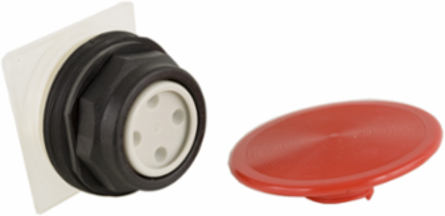

Schneider Electric 9001SKR5R Push-button head, Harmony 9001SK, plastic, snap-in plastic mushroom 57mm, red, 30mm, spring return
Schneider Electric 9001SKR5R Push-button head, Harmony 9001SK, plastic, snap-in plastic mushroom 57mm, red, 30mm, spring return
- MPN: 9001SKR5R
- UPC: 785901820901
- PPN: SCH-9001SKR5R
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$104.51/ EA
Description
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Product Certifications
- CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
- Light Source
- without
- Bezel Material
- plastic
- Light Block Supply
- without supply
- Operator Profile
- mushroom Ø 57 mm
- Shape Of Signaling Unit Head
- octagonal
- Size
- 30 mm
Contacts Type And Compositionwithout contact block
Operator Additional Informationsnap-in plastic
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourred
Ip Degree Of ProtectionIP64
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for push-button
