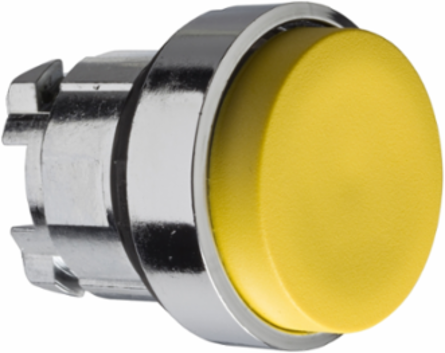

Schneider Electric ZB4BH5 yellow projecting pushbutton head 22mm push-push unmarked
- MPN: ZB4BH5
- PPN: SCH-ZB4BH5
CAD
$45.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, projecting yellow button head operates with latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cad Overall Depth
- 33 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Customizable
- 1, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Group Of Product
- projected push-push non illum
- Main Group
- push-button
- Mechanical Durability
- 2000000 cycles
- Operator Profile
- yellow projecting, unmarked
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- push-push
- Pep Code
- ENVPEP2308035EN
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Electrical Composition CodeC11 3 single front mounting, C15 1 single front mounting, C9 3 single front mounting
Certificate AgencyLROS (Lloyds register of shipping), CSA, UL Listed, DNV, GL, BV
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
Product Kit IdentifierN
Compatibility CodeZB4
Gcr BridgeZB4BHCUST03
Head Typestandard
Markingunmarked
Mounting Diameter22 mm
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for non-illuminated push-button
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Sustainable PackagingNo
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Cap/Operator Or Lens Colouryellow
Package Weight(Lbs)31 g
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2308035EN
- Eu Rohs Directive
- Compliant
- Pep Code
- ENVPEP2308035EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2308035EN
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
