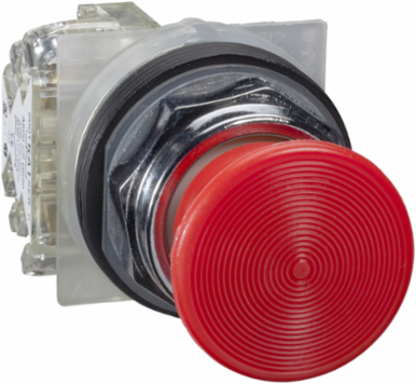

Schneider Electric 9001KR9R94H13 Harmony Push Button, 30 mm Metal Mushroom, Red, 2 Positions, IP66

  • MPN: 9001KR9R94H13
  • UPC: 785901413158
  • PPN: SCH-9001KR9R94H13
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $270.82

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Physical Attributes

    Cad Overall Depth
    74 mm
    Cad Overall Width
    46 mm
    Cad Overall Height45 mm
    Size30 mm

    Complementary Attributes

    Rated Breaking Capacity
    3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Operator Profile
    mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked
    [Icm] Rated Short-circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
    Terminals Description Iso N°1
    (13-14-11-12)OF, (13-14-11-12)OF
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.1316630657
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.0219947445
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    9001K
    Contacts Type And Composition
    1 C/O
    Head Material
    plastic
    Mounting Diameter
    30 mm
    Operator Additional Information
    screw-on plastic with set screw
    Overvoltage Category
    class II conforming to IEC 61140
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Software Version
    v5.9.4
    Tightening Torque
    0.8-0.8 N.m IEC 60947-1
    Type Of Operator
    push-pull
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; MX
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    Recyclability Potential, In %
    15
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colour
    red
    Short-circuit Protection
    10 A cartridge fuse IEC 60947-5-1
    Package Weight(Lbs)
    146.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyUL 508, NEMA
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
    Carbon Footprint Of The Distribution Phase [A4]0.0204567591, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0323061022, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2503027EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Bezel Materialmetal
    Contacts Materialsilver alloy contacts
    Device Short Name9001K
    Mechanical Durability5000000 cycles
    Operating Positionany position
    Operator Position Information2 positions
    Positive Openingwithout
    Product Or Component Typepush-button
    Range Of ProductHarmony 9001K
    Shape Of Screw Headcross slotted
    Shock Resistance50 gn IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2503027EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    [Ith] Conventional Free Air Thermal Current10 A
    [Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2503027EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-12-07
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint1.2064206715
    Environmental DisclosureENVPEP2503027EN
    Ip Degree Of ProtectionIP66 IEC 60529
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2503027EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    push-button
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
