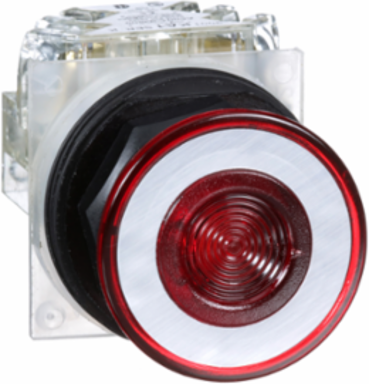

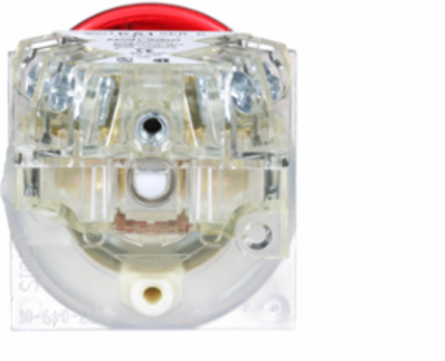

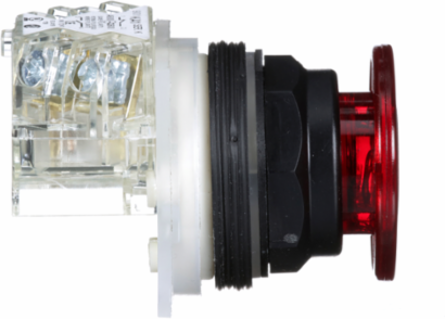

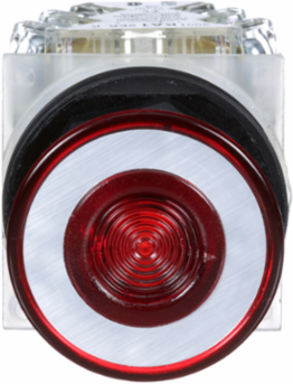

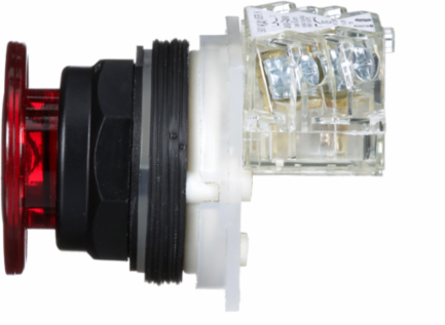

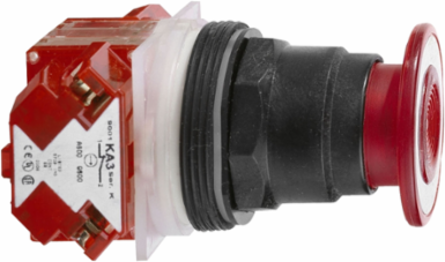

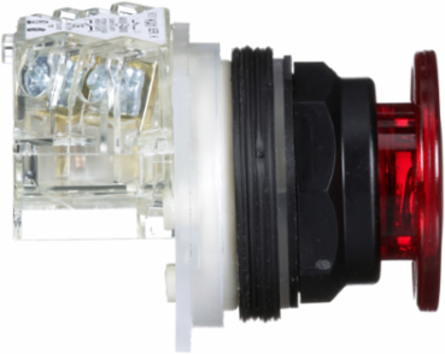

Schneider Electric 9001SKR9RH13 Push Button Mushroom 41mm Red, 30mm, IP66, 1 C/O

MPN: 9001SKR9RH13
UPC: 785901043201
PPN: SCH-9001SKR9RH13
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$220.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Push Button Mushroom 41mm Red, 30mm, IP66, 1 C/O

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large plastic set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	90 g

Physical Attributes

Cad Overall Depth	69 mm
Cad Overall Width	46 mm

Cad Overall Height	45 mm
Size	30 mm

Complementary Attributes

Rated Breaking Capacity	3 kA 120 V AC-15, 720 VA6 kA 600 V AC-15, 720 VA1.2 kA 480 V AC-15, 720 VA1.5 kA 240 V AC-15, 720 VA, 0.1 kA 125 V DC-13, 0.27 kA 600 V DC-130.55 kA 250 V DC-13
Icm Rated Short Circuit Making Capacity	12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Uimp Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1

Ie Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Ui Rated Insulation Voltage	250 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked
Carbon Footprint Of The Distribution Phase A4	0.0121125547, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0191286131, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-25
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	plastic
Contacts Material	silver alloy contacts
Device Short Name	9001SK
Mounting Diameter	30 mm
Operator Additional Information	screw-on plastic
Overvoltage Category	class II conforming to IEC 61140
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Type Of Operator	push-pull
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Cap/Operator Or Lens Colour	red
Customs Code	8536509065
Short Circuit Protection	10 A cartridge fuse IEC 60947-5-1
Functional Unit Description	The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
Functional Unit Unit	Unit
Recyclability Potential In %	15

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, UL 508
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.0779583942
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.6 kg CO2 eq., 0.6051284672
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001SK
Contacts Type And Composition	1 C/O
Mechanical Durability	5000000 cycles
Operating Position	any position
Operator Position Information	2 positions
Positive Opening	without
Product Or Component Type	push-button
Range Of Product	Harmony 9001SK
Shape Of Screw Head	cross slotted
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.7 kg CO2 eq.
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.7143280292
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-12-07
Psr Version	PSR-0005-ed2-2016 03 29
